HKZK-330 Overhead Drill Press (3.8-7.5m & Portable Type)


The HKZK-330 Overhead Drill Press is the latest product launched in 2023, featuring comprehensive upgrades based on auto ceiling drill machine, enhanced portability, and reduced costs. The machine harnesses a two-stage telescopic system, with the first stage using a gear-driven mechanism and the second stage employing a chain-driven method, achieving a telescopic stroke of up to 1.6 meters. It can effortlessly traverse overhead pipelines and beams.

The equipment is equipped with flexible telescopic rods that simulate the force exerted by a human arm while drilling, protecting the drill from potential damage. The drill switch is conveniently located on the control handle, ensuring easy alignment during drilling operations. The device comes with retractable casters, allowing drill operations without blind spots, even near walls.

Constructed from high-quality steel, the overhead drill press offers a 2-year warranty, reflecting its exceptional quality and optimized performance.

This product supports online purchase and free shipping to door (by sea) service in some countries, you can try the “Buy Now” below to purchase. If you have any questions about this machine, please click “Ask a Question” below to leave your contact information, and we will contact you within 24 working hours.

Ask Questions


If you want to know the specific shipping policy, please check: Shipping Policy

Drilling Height: 3.8m, 4.8m, 6.2m, 7.5m

SKU: hiking2016-6688-hkzk330 Category:

Product Overview Of HKZK-330 Overhead Drill Press

The HKZK-330 overhead drill press simplifies the task of drilling in ceilings, reducing the intensity of operator labor, and accelerating the pace of construction.

TypeMaximum Drilling HeightLift Stroke

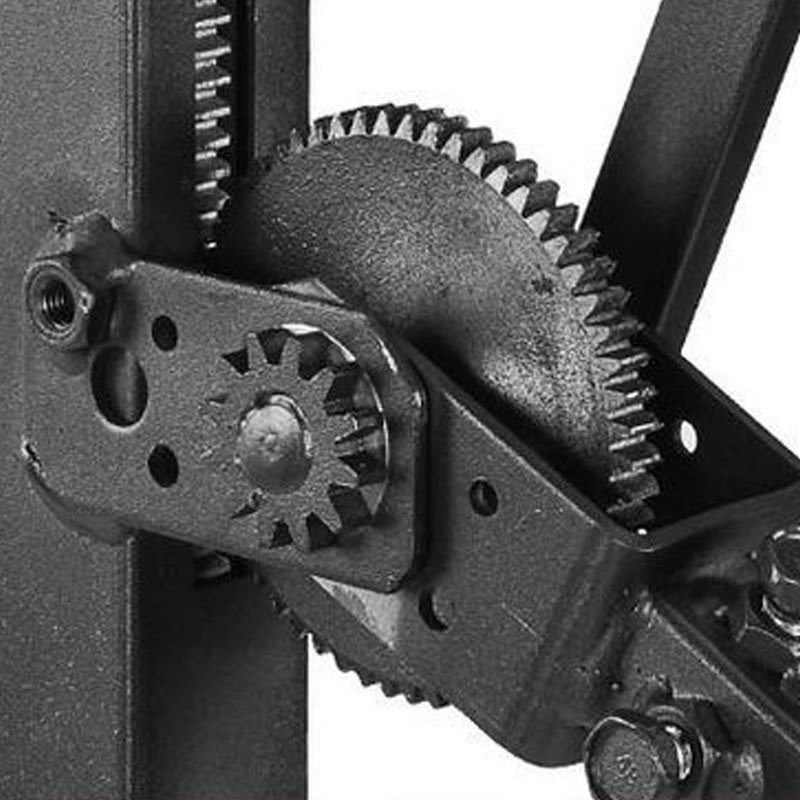

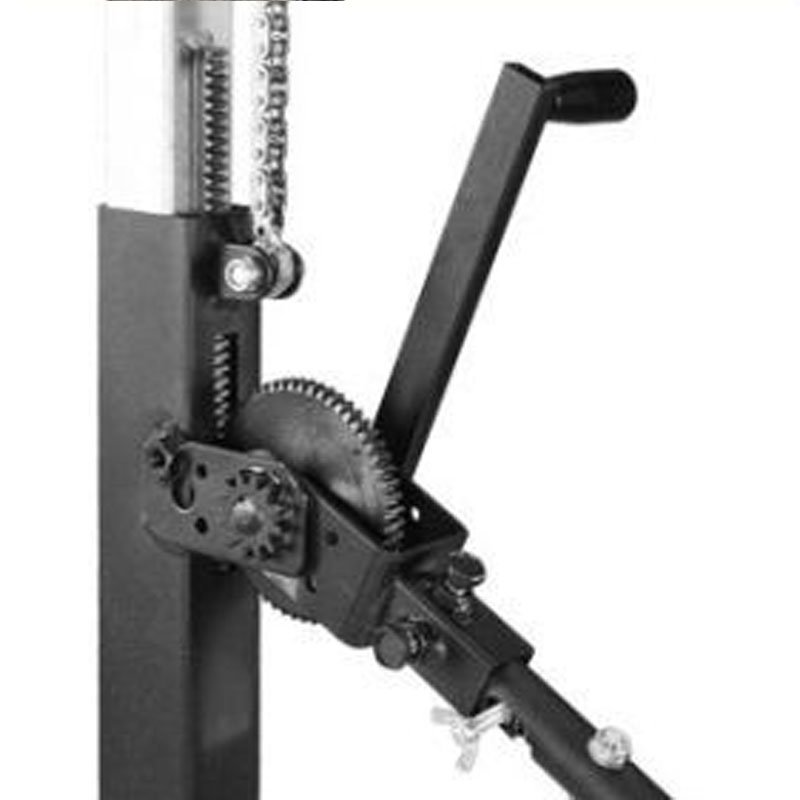

  • Featuring dual gear and chain stroke, reaching a maximum stroke of 1.6 meters, it is capable of effortlessly handling complex ceiling drilling tasks.
  • Equipped with a resilient push rod, it simulates the force exerted by manual handling, effectively preventing impact disparity during drilling in concrete ceilings and mitigating any potential damage to the drill.

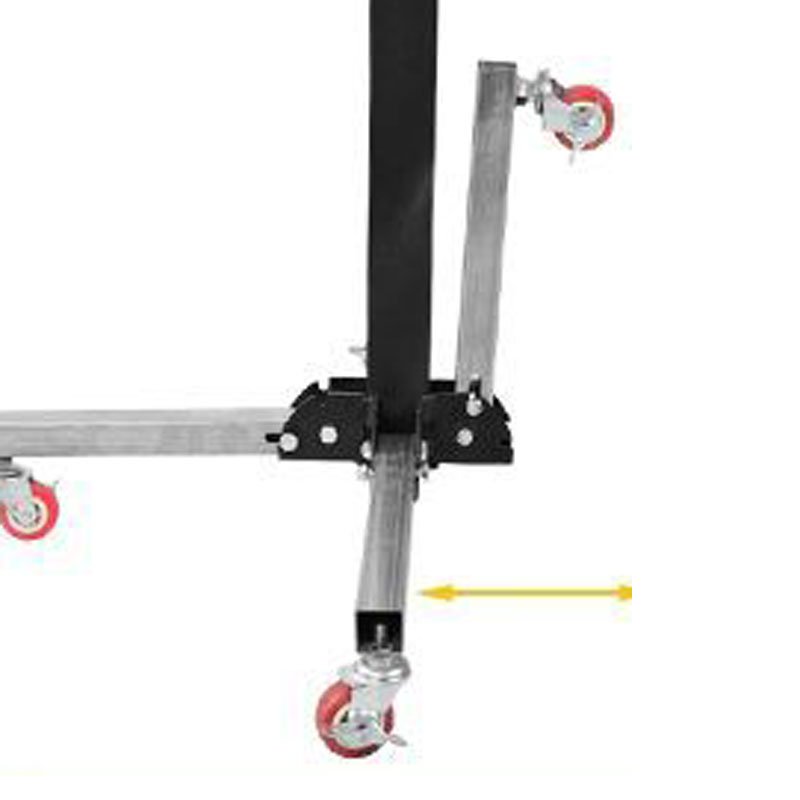

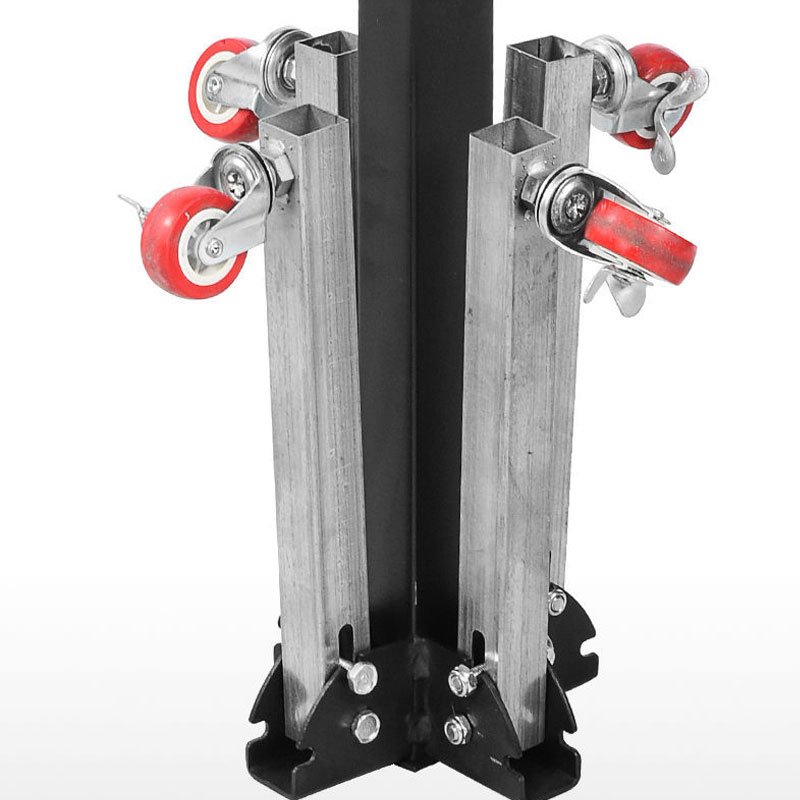

  • Foldable casters are included for easy transport. When positioned near a wall, these can be retracted to allow hole drilling without any dead angles.

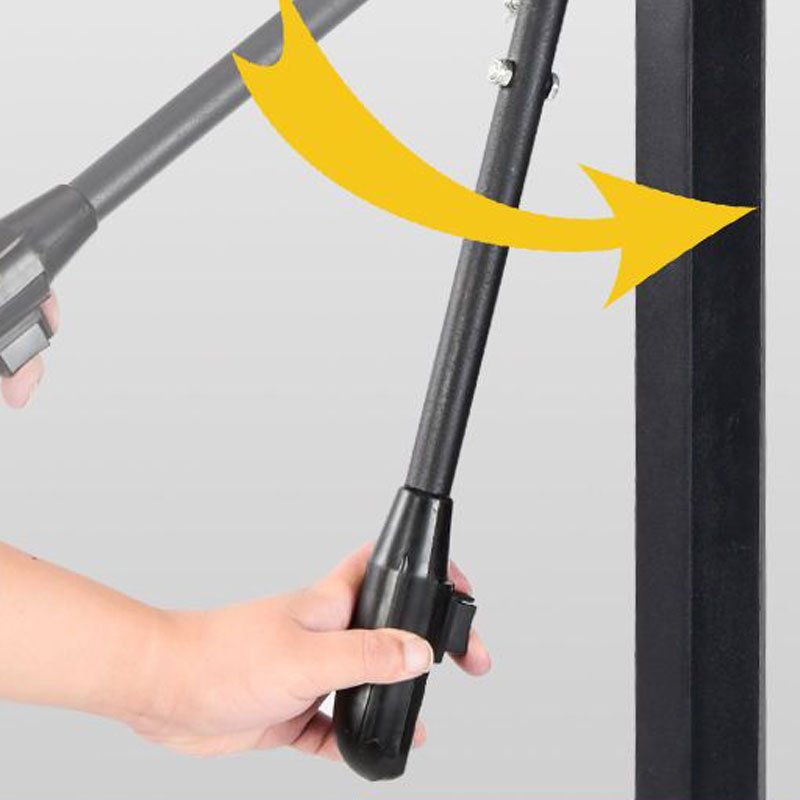

  • The drill switch is conveniently controlled by a handle for better alignment during drilling.
  • The device is manufactured using thickened steel for sturdy, durable performance. A two-year warranty is provided.


How long will it take to receive the overhead drill press upon purchase?

We offer two shipping options – by air or sea. Air shipment typically takes about 10 working days post-dispatch, while sea shipment varies among locations. We recommend consulting us for more specific details.

What kind of after-sales service is provided?

Our HKZK-330 overhead drill press comes with a free two-year warranty and a lifetime service at cost. If any non-manmade faults occur within 2 years, we will provide free spare parts by mail. After the warranty period, we remain committed to helping you solve issues, only charging for part and shipment costs.


If you need to know more about the machine, Please leave your contact in the below from, We will contact you in 24 hours.

    Weight 30 kg
    Dimensions 200 × 36 × 36 cm

    HKZK-330-1 / 3.8m, HKZK-330-2 / 4.8m, HKZK-330-3 / 6.2m
