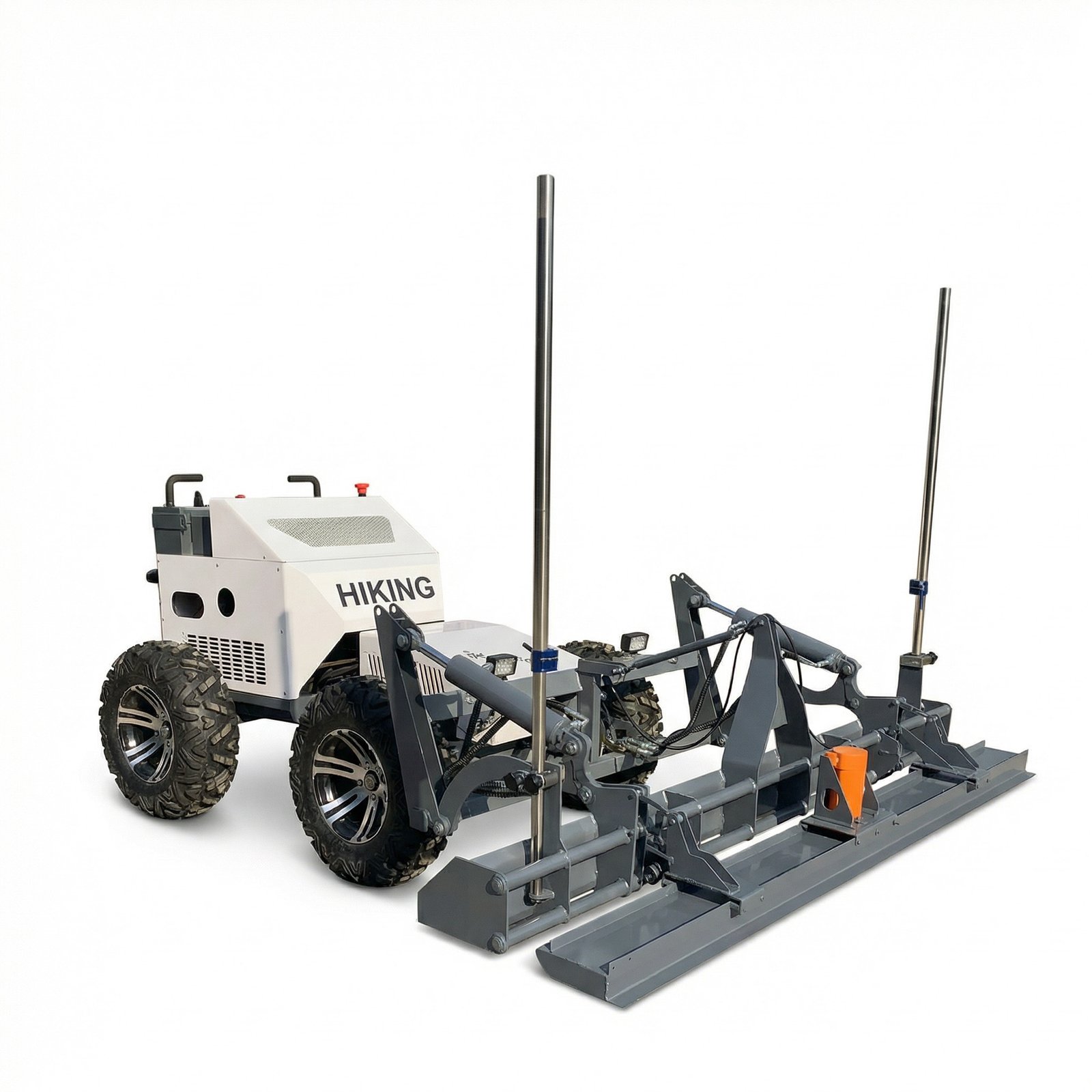

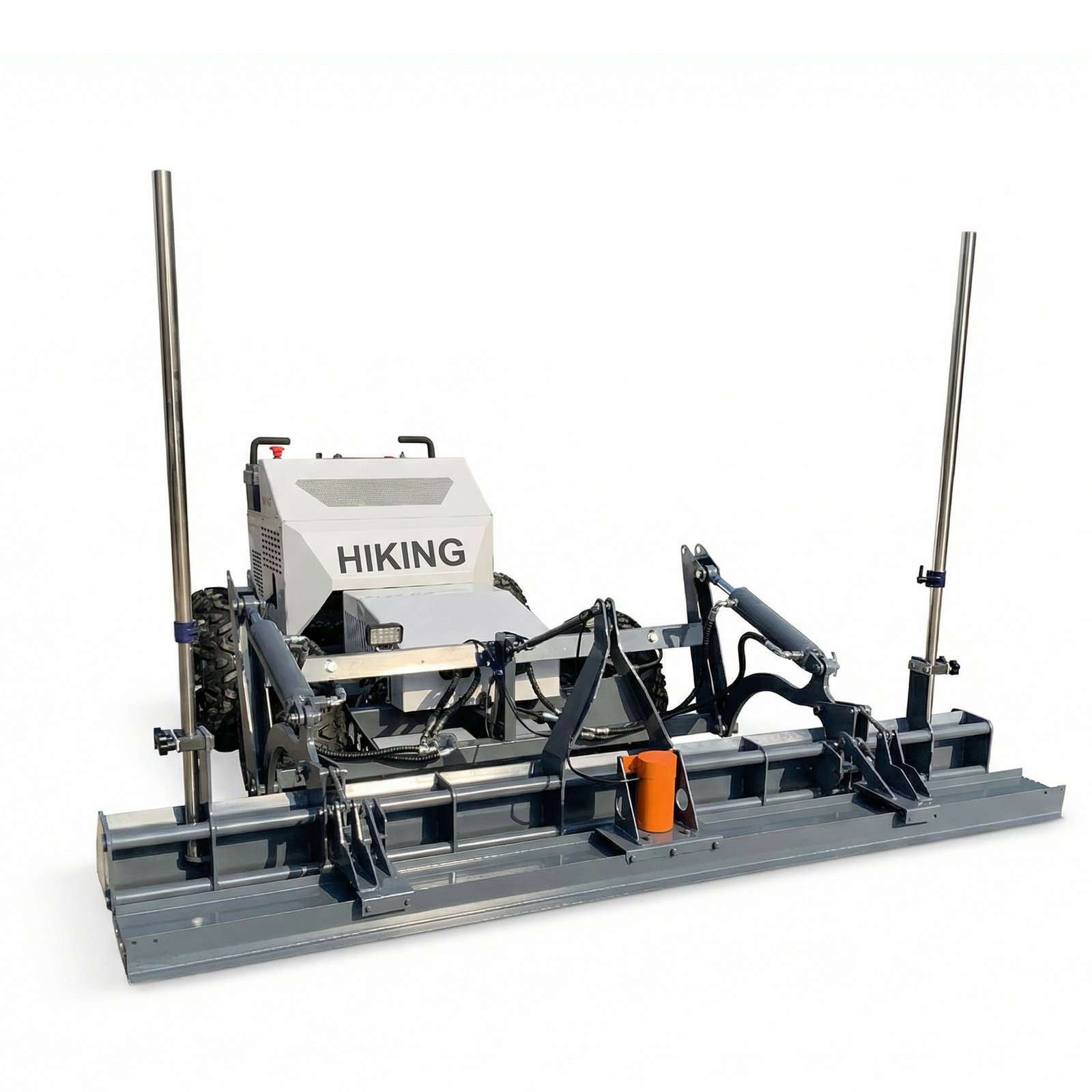

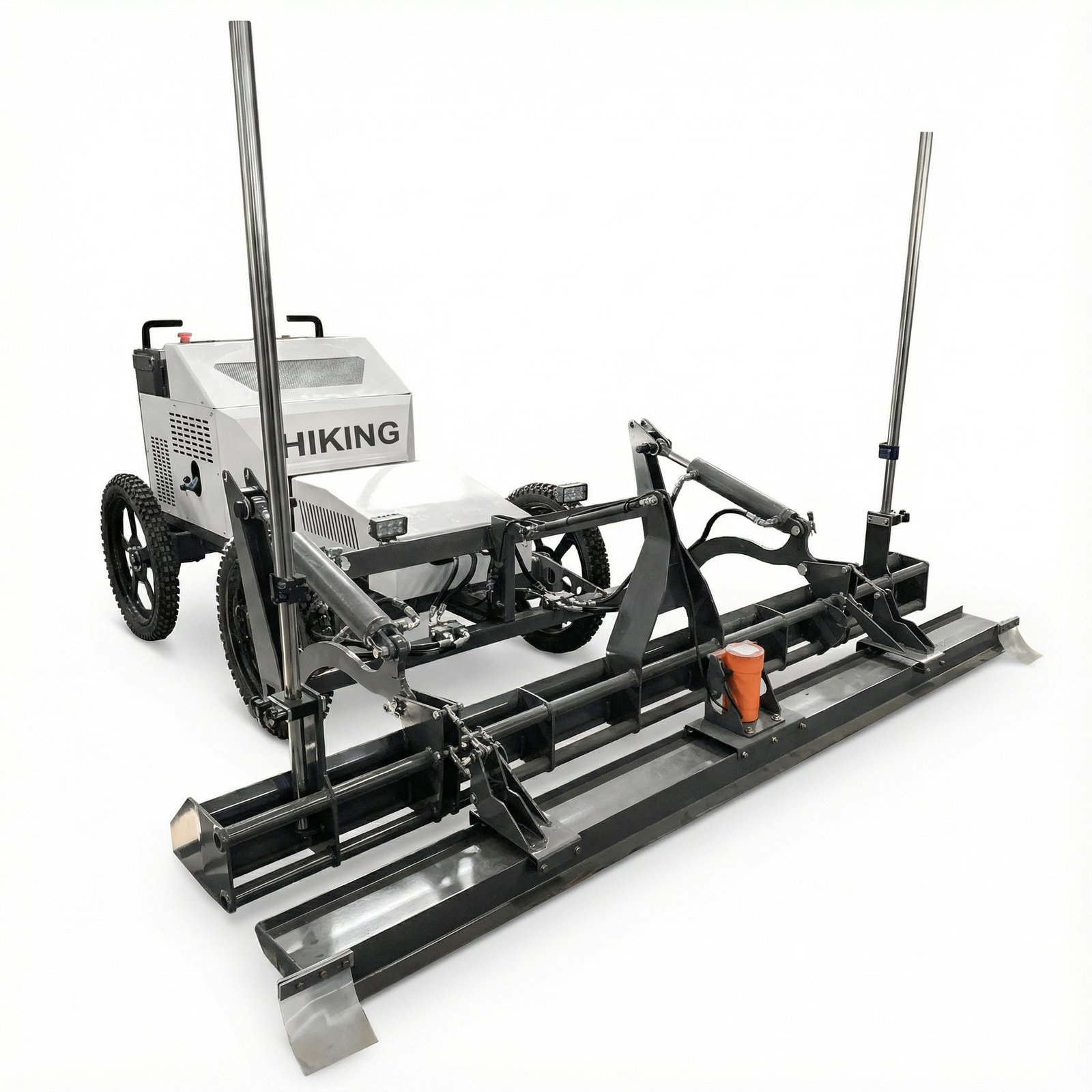

S485-M Ride on Concrete Laser Screed Machine


S485-M Concrete Laser Screed machine is a new type light laser screed machine. It weighs only 600kg and is equipped with wide wheels that can be used in a variety of concrete leveling works with rebar mesh. At the same time, the machine is equipped with an advanced leica laser system with high precision.

This product is offering a larger discount. If you are interested in this machine, please click “Ask Questions” below to leave your contact information and we will contact you within 24 working hours.

Ask Questions

SKU: hiking2016-6688-5 Category:

s485 laser screed

TypeS485-M Ride on laser screed
EngineBriggs&Stratton 23hp
Energy burn1.5L/h
Fule tank capacity36L
Drive systemHydraulic motor four-wheel drive
Vibration frequency800N

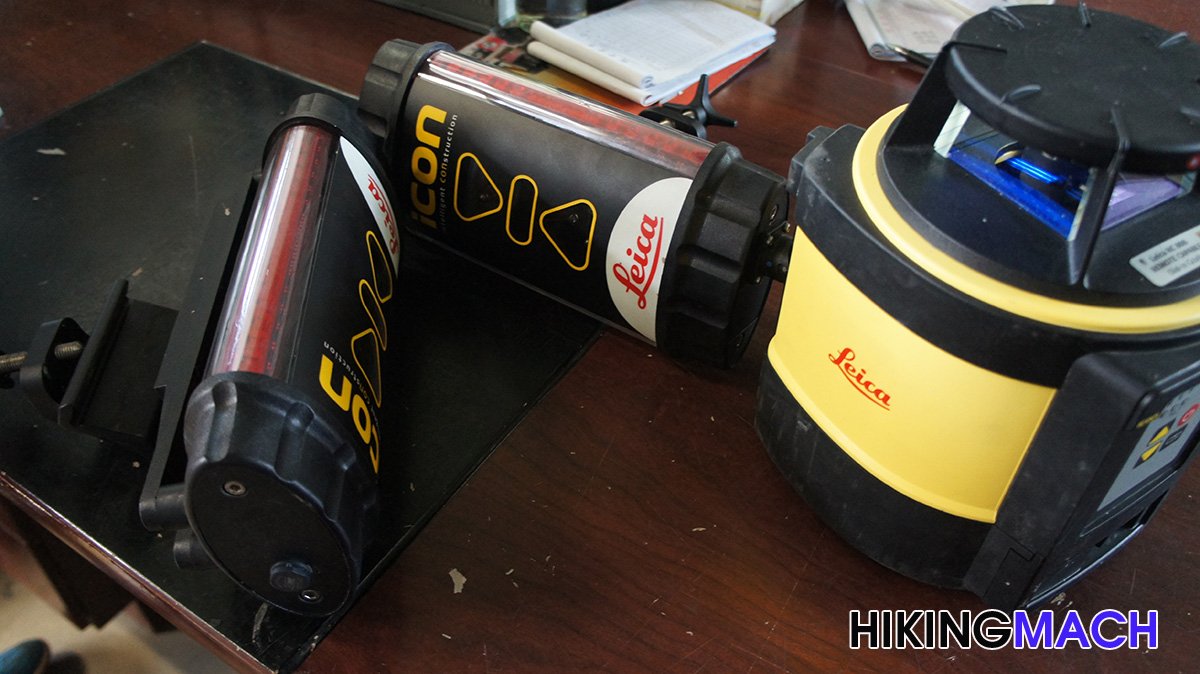

Laser systemLeica
wheelsNarrow wheels& Wide wheels
Diver typeReducer+Motor
Operatio mode of turningElectronic control Hydraulic system
Working wide2.5m
The parameters and pictures in this catalogue are for reference only. The specific data is subject to the actual product.

Concrete laser screed machine Performance Characteristics

1.Intelligent operation by handle and easy to control, the machine can be operated by one person. It can freely move and turn with agility, allowing a running system controlled by hand. The wheels can go forwards, backwards and around with manually controlled speed.

2.Laser gun is installed separately , which makes it possible to do large area one-time construction while ensuring consistent ground level. The ground level will not be affected by the pattern plates, inducing no random error . Large area one-time construction will reduce joint place, thus lower the follow-up ground maintenance cost.

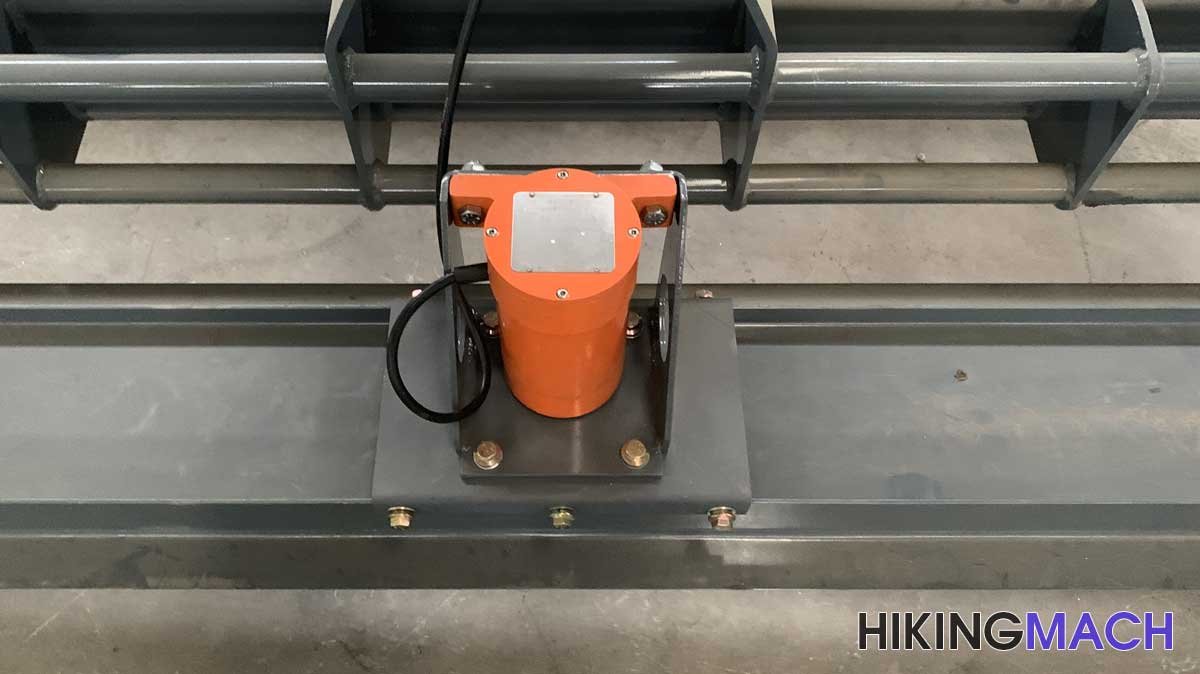

3.Integrated Leveling Head comprises scraper blade ,vibrator, vibrating plate, screw conveyor and other parts, combining working procedures of mixing, leveling, vibrating and etc, to complete the job in a row, so as to increase efficiency and reduce cost. It can keep level of the working surface even when the ground base is uneven with bumps and slope. Square end vibrating plate of 4000 times/min high vibration frequency will ensure concrete floors with great intensity and dispersed deformation strength ,thus effectively prevent the occurrence of floor bubble ,shell, cracking and unevenness.

4.The elevation is measured automatically by the laser measurement and control system; and the ground’s high point height is automatically controlled by the laser machine’s computer. Based on that, the ground can be more even by precision leveling directly on the concrete layer and the ground flatness will not be influenced by the pattern plates. Without having to be the formwork, the cost for material and labor as the working period will all get reduced. This machine can finish construction area of more than 300 sq. meters per hour. which means 3000-5000sq.meters per day.

inquiry hiking

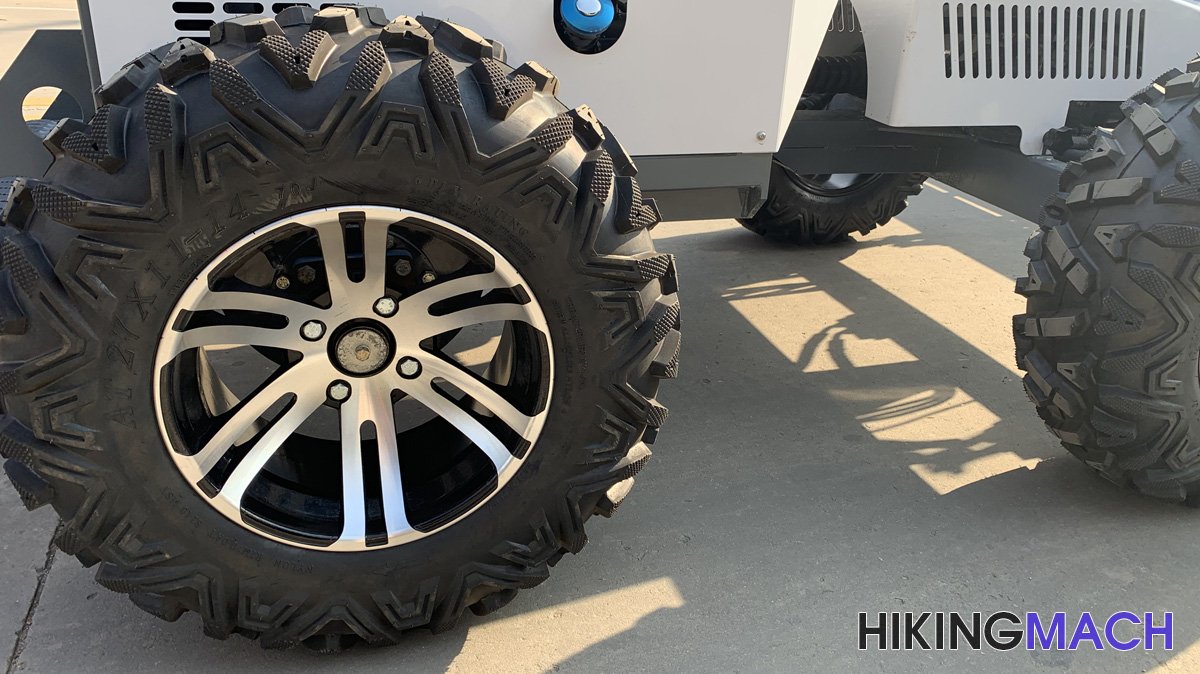

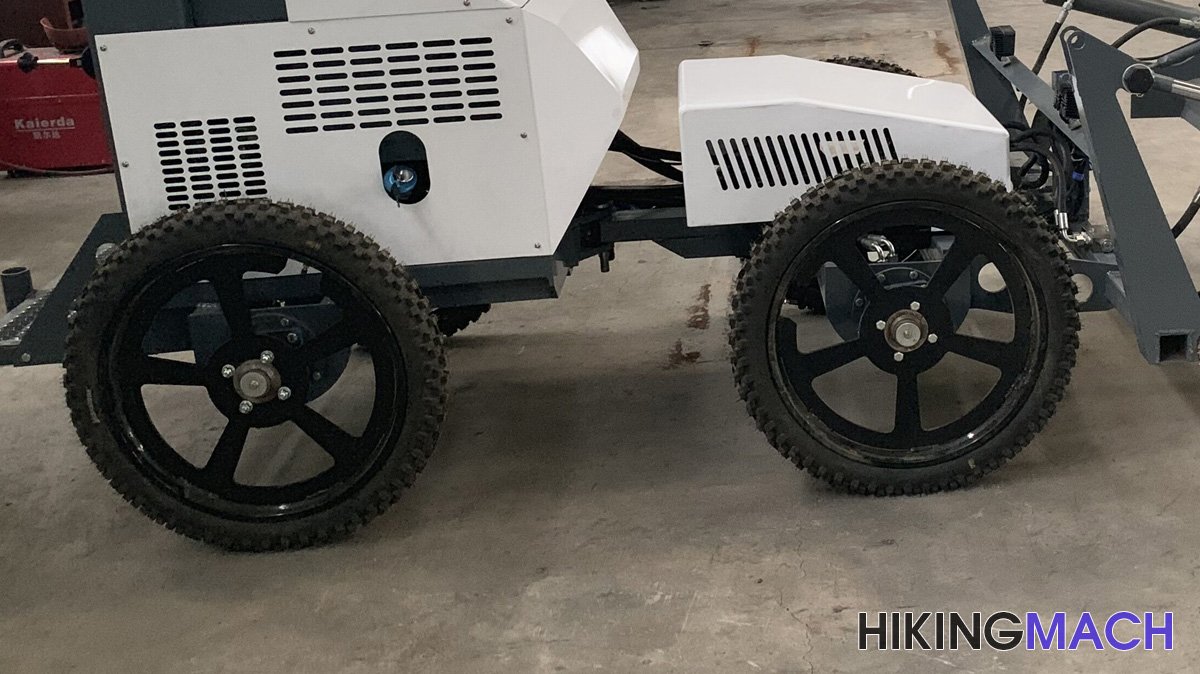

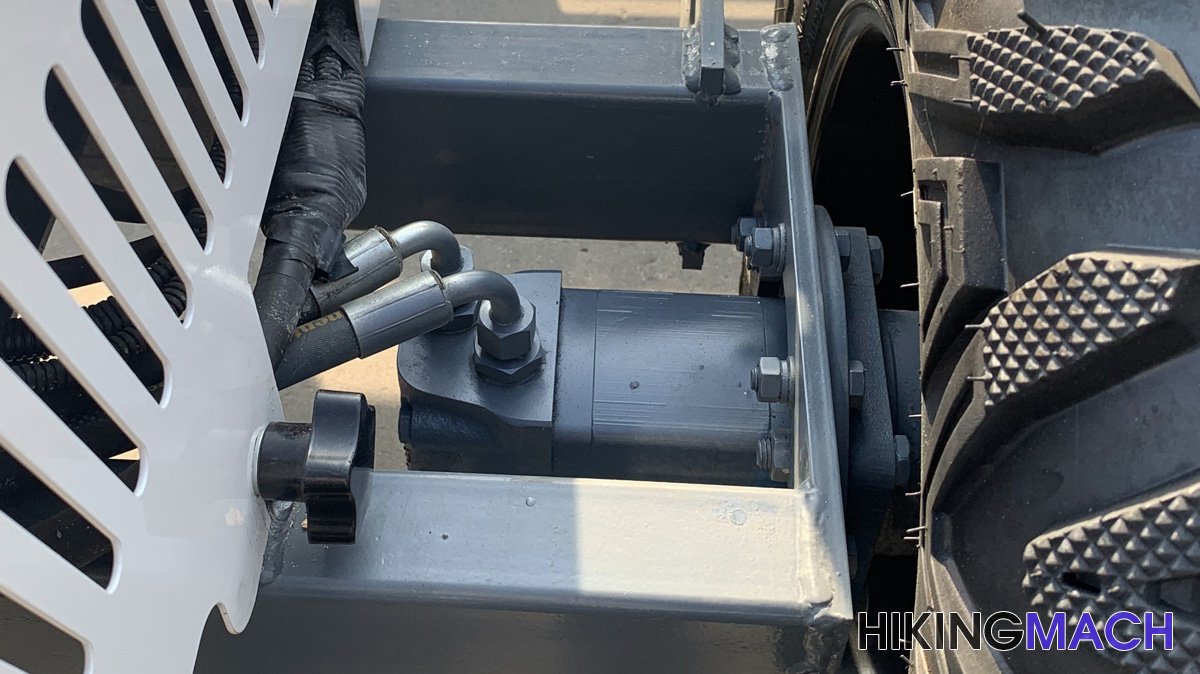

    the wheels of the s485-m laser screed
    Four-wheel hydraulic drive

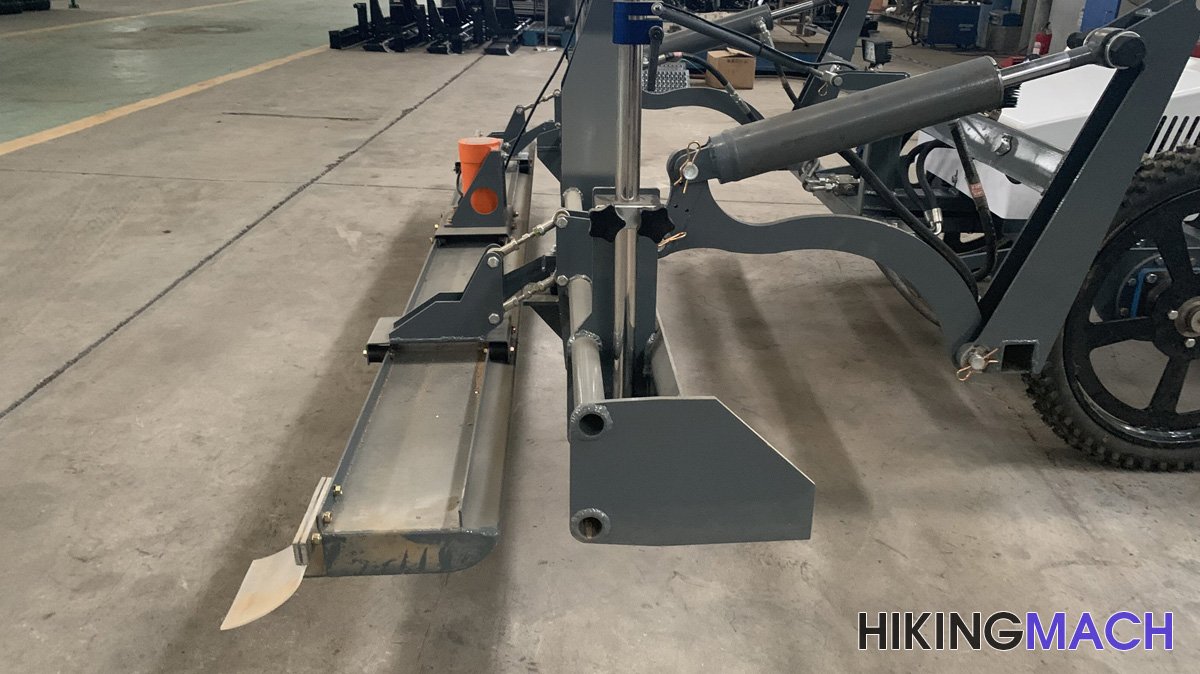

    the leveling head of the s485-m laser screed
    Advanced leveling head design

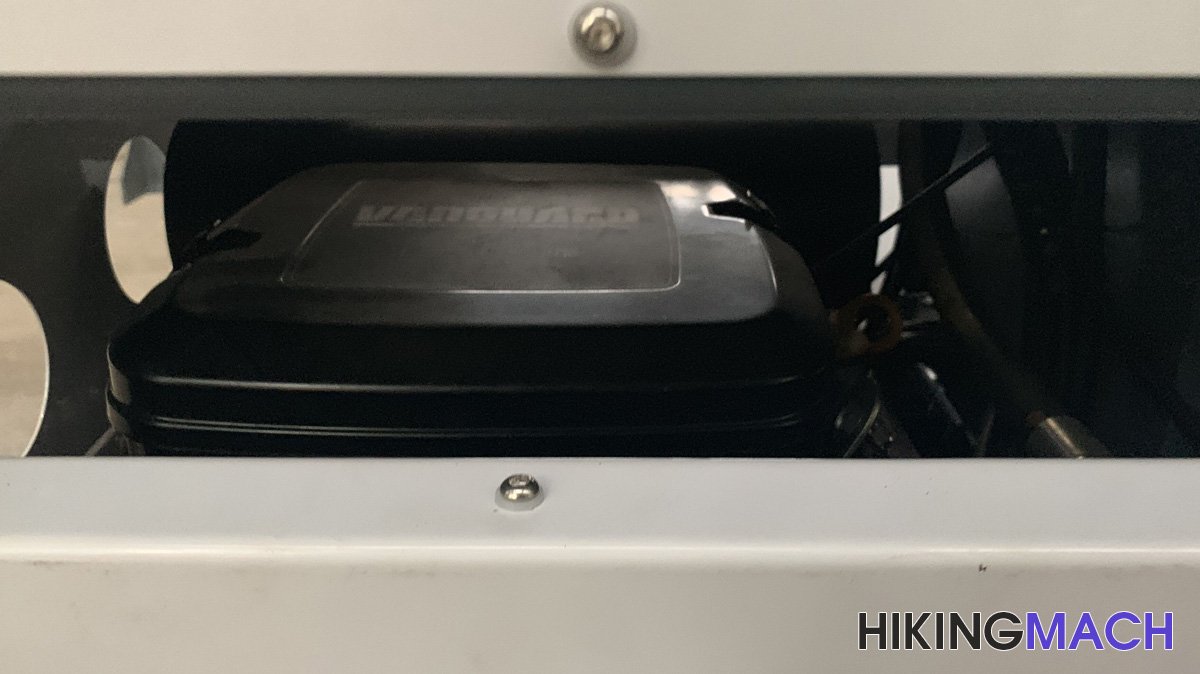

    The engine of s485-m laser screed machine
    The powertrain is equipped with a 23-horsepower, high-torque petrol engine powered by Briggs&Stratton (USA), providing the machine with the power.

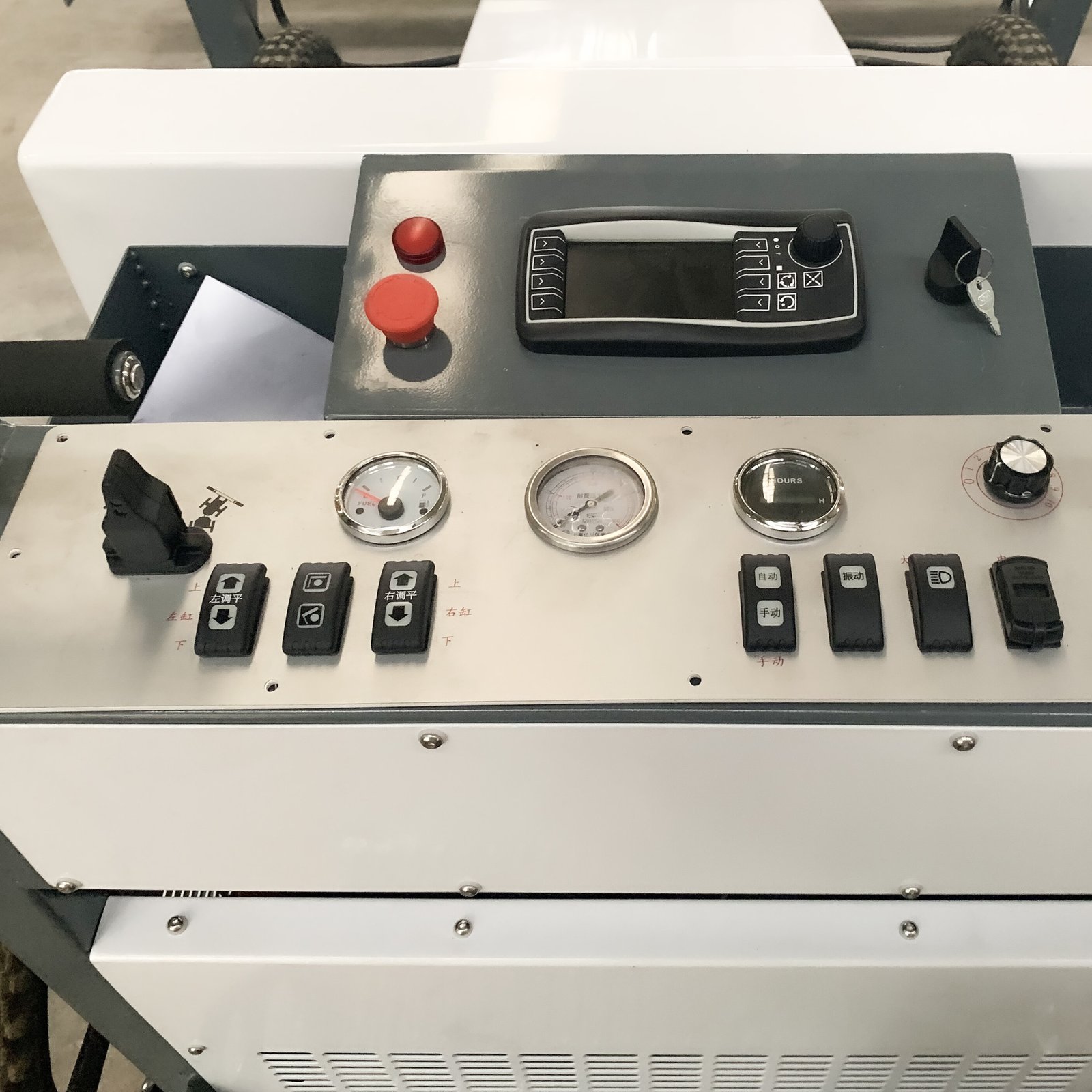

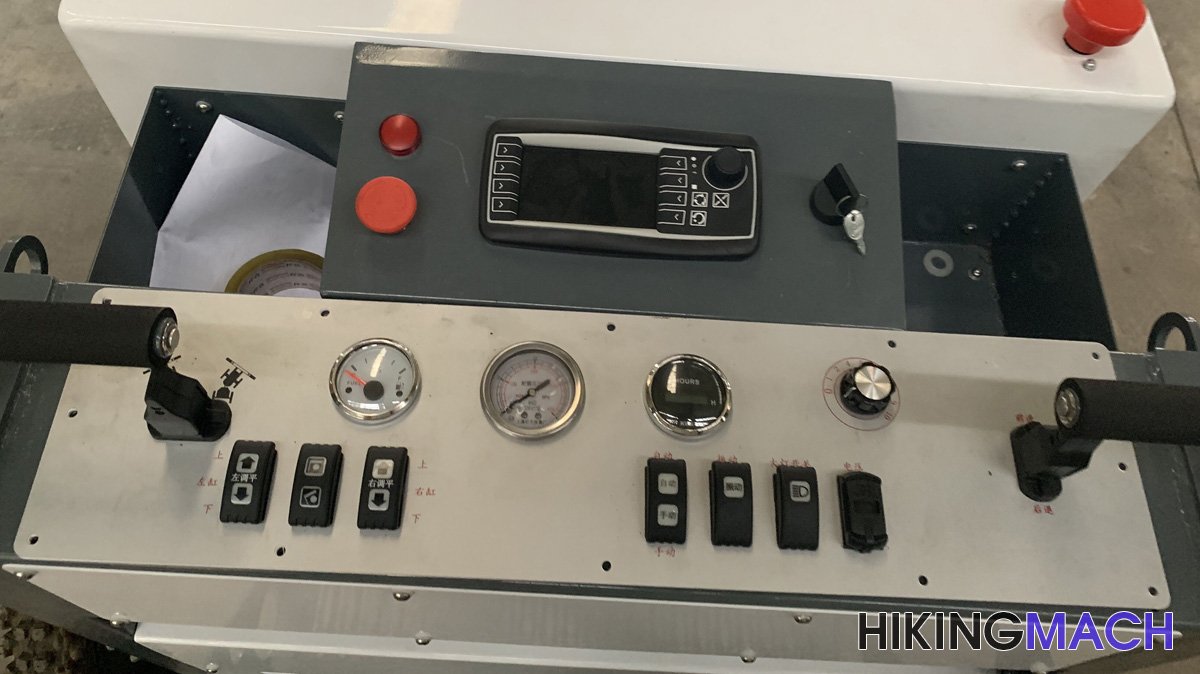

    The operation panel of s485 laser screed
    The forward and backward movements are controlled by an electric joystick, which is easy to operate. The speed adjustment uses a knob control to precisely adjust the S485-M laser screed machine speed. The control surface has a one-button automatic leveling function. The steering is also controlled by an electronically controlled rocker instead of mechanical control, making the operation more sensitive and simple.

    Comparison between HIKING laser screed and the traditional crafts

    1. Reducing labor costs, improving efficiency doubled

    Using traditional construction process needs more workers for supporting template (channel), RBI, paving, needing about 20 persons. The construction area per day is 800-1500㎡.

    Using HIKING laser concrete screed can reduce the overall number of people to 4-8 persons. It can also be operated by one person. The construction area per day can be improved to 2000㎡—3500㎡, greatly reducing the labor costs.

    1. Laser point-to-point, high-precision, low error.

    Traditional craft leveling needs to support templates to control surface elevation and pull control line. Elevation error is larger. Entire levelness and flatness of the floor can not be guaranteed.

    Using laser point emitter is applicable to disposable paving in a large area. The laser measurement and control system controls the elevation anytime, it does not need to pull the control line when leveling, it does not also need to support side templates to control ground level, thus avoiding the elevation error caused by template (channel) shock during the construction process, also reducing the elevation error caused by Traditional artificial block formworks.

    Reducing labor costs, improving efficiency doubled
    1. Better flatness and integrity

    Traditional construction process needs one day for formworks and one day for pouring mercury, so they can only jump for construction from one piece to another, there is a large limitation here they can not do continuous operation, and there exists a bad integrity and it is easy to cumulative errors in construction joints.

    HIKING laser concrete screed will have a greater efficiency and flatness for the disposable overall paving with a large area of floor. The completion of the entire floor will make a better ground integrity. The traditional construction process can not complete this.

    The ground will be even more dense and uniform.frequency vibrator of 4000 times per minute will let the vibrator of leveling head produce an uniform high frequency vibration to make even more dense concrete floor.

    images display


    customers of hiking laser screed customers of hiking laser screed

    contact hiking laser screed

    IF you need to know more about the Laser screed, you can leave your contact in the below from, We will contact you in 24 hours.

      Weight 800 kg
      Dimensions 320 × 160 × 180 cm
