S840-2 Remote Control Concrete Laser Screed


The S840-2 remote-controlled concrete laser screed machine is an advanced laser screed machine developed by our company on the basis of S840-2 Ride on laser screed. In addition to the features of the S84-2 ride on laser screed machine for stability and leveling, the product also realizes long-distance remote control of the laser leveler.Since the driving operation of the machine is not required, the weight of the machine is made lighter and more suitable for construction on the steel mesh.In addition, in some dangerous conditions, remote control can also provide a good protection for the safety of operators.

This product is offering a larger discount. If you are interested in this machine, please click “Ask Questions” below to leave your contact information and we will contact you within 24 working hours.

Ask Questions

SKU: hiking2016-6688-8 Category:

S840-2 Remote control concrete laser screed
S840-2 Remote control concrete laser screed
ModelBriggs&stratton V-type engine
Engine power27&31HP
Start upElectric start
Fuel tank capacityGasoline 17L
Walking system
Walking modeWheeled
Drive SystemHydraulic motor four-wheel drive
Drive controlElectric control hydraulic system
Leveling system
Paving methodAuger paving
Vibration frequency4200 times / minute
Vibration force1000N
Work efficiency200m2-500m2/hour
Laser control systemLeica brand
Elevation controlDouble hydraulic cylinder
Laser controlLaser scanning
Control effectPlane, slope or double slope
Maximum ground clearance330mm
Tire model100/900-21Anti-solid narrow tire (inflatable wide tire)
Net weight980kg
Machine size2880X2600X1040mm
The parameters and pictures in this catalogue are for reference only. The specific data is subject to the actual product.


    Concrete laser screed machine Performance  Characteristics

    1.Intelligent operation by handle and easy to control, the machine can be operated by one person. It can freely move and turn with agility, allowing a running system controlled by hand. The wheels can go forwards, backwards and around with manually controlled speed.

    2.Laser gun is installed separately , which makes it possible to do large area one-time construction while ensuring consistent ground level. The ground level will not be affected by the pattern plates, inducing no random error . Large area one-time construction will reduce joint place, thus lower the follow-up ground maintenance cost.

    3.Integrated Leveling Head comprises scraper blade ,vibrator, vibrating plate, screw conveyor and other parts, combining working procedures of mixing, leveling, vibrating and etc, to complete the job in a row, so as to increase efficiency and reduce cost. It can keep level of the working surface even when the ground base is uneven with bumps and slope. Square end vibrating plate of 4000 times/min high vibration frequency will ensure concrete floors with great intensity and dispersed deformation strength ,thus effectively prevent the occurrence of floor bubble ,shell, cracking and unevenness.

    4.The elevation is measured automatically by the laser measurement and control system; and the ground’s high point height is automatically controlled by the laser machine’s computer. Based on that, the ground can be more even by precision leveling directly on the concrete layer and the ground flatness will not be influenced by the pattern plates. Without having to be the formwork, the cost for material and labor as the working period will all get reduced. This machine can finish construction area of more than 300 sq. meters per hour. which means 3000-5000sq. meters per day.

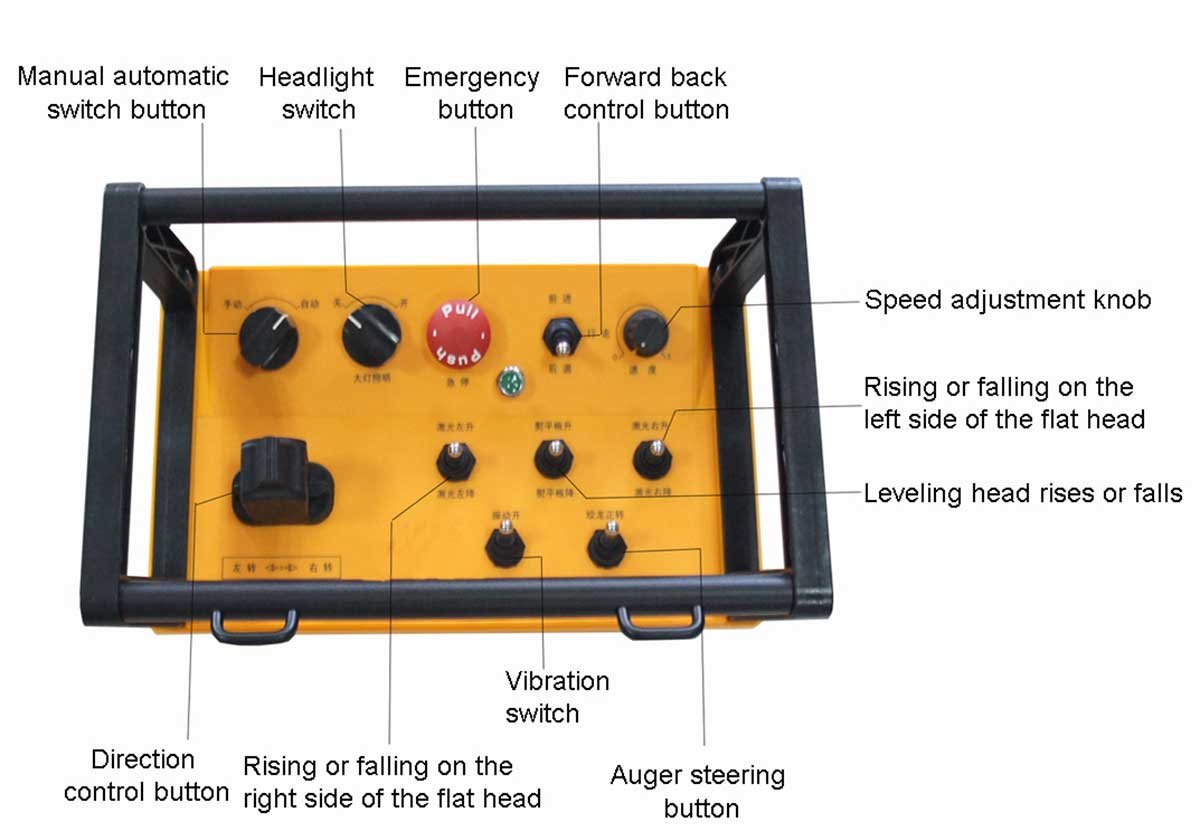

    S840 Remote control laser screed button description
    S840-2 Remote control laser screed button description
    engine of s840-2 laser screed
    The powertrain is equipped with a 31-horsepower, high-torque petrol engine powered by Briggs&Stratton (USA), providing the machine with the power.
    hydraulic valve unit of s840 laser screed
    The world’s most advanced Rexroth (Germany) hydraulic system is equipped, it has high stability and durability, and can realize full electronic control of steering speed, which makes the machine operation more convenient and makes the machine more sensitive.
    hydraulic pump of s840-2 laser screed
    The world-leading Rexroth (Germany) 28cc large hydraulic pump is equipped, it has high stability and durability, providing the power of the machine hydraulic system.
     high-speed hydraulic motor of s840-2 laser screed
    The Danfoss (US) high-speed hydraulic vibration motor makes the machine has a strong vibration force.
    leveling system of s840-2 laser screed
    The advanced self-leveling leveling head gives the machine an excellent leveling effect.
    large hydraulic motor of s840-2 laser screed
    The four-wheel drive design is equipped with a large hydraulic motor, allowing the machine to run freely in concrete of different depths.
    material feeding spiral of s840-2 laser screed
    The machine is equipped with a high-speed feeding screw that automatically discharges excess concrete and reduces manpower input.
    structure of the s840-2 laser screed
    The advanced articulated design provides greater cornering and flexibility in the operation of the machine in concrete.
    Free with vacuum wide tires, it can be used under the condition of finer mesh.
    Free with vacuum wide tires, it can be used under the condition of finer mesh.
    Super bright LED headlights
    Super bright LED headlights
    laser system of s840-2 laser screed
    The imported Lycra (Switzerland) laser system, with an accuracy of 1mm, is perfectly matched to the machine and has excellent sensitivity.

    Comparison between HIKING laser screed and the traditional crafts

    1. Reducing labor costs, improving efficiency doubled

    Using traditional construction process needs more workers for supporting template (channel), RBI, paving, needing about 20 persons. The construction area per day is 800-1500㎡.

    Using HIKING laser concrete screed can reduce the overall number of people to 4-8 persons. It can also be operated by one person.  The construction area per day can be improved to 2000㎡—3500㎡, greatly reducing the labor costs.

    1. Laser point-to-point, high-precision, low error.

    Traditional craft leveling needs to support templates to control surface elevation and pull control line. Elevation error is larger. Entire levelness and flatness of the floor can not be guaranteed.

    Using laser point emitter is applicable to disposable paving in a large area. The laser measurement and control system controls the elevation anytime,  it does not need to pull the control line when leveling, it does not also need to support side templates to control ground level, thus avoiding the elevation error caused by template (channel) shock during the construction process, also reducing the elevation error caused by Traditional artificial block formworks.

    1. Better flatness and integrity

    Traditional construction process needs one day for formworks and one day for pouring mercury, so they can only jump for construction from one piece to another, there is a large limitation here they can not do continuous operation, and there exists a bad integrity and it is easy to cumulative errors in construction joints.

    HIKING laser concrete screed will have a greater efficiency and flatness for the disposable overall paving with a large area of floor. The completion of the entire floor will make a better ground integrity. The traditional construction process can not complete this.

    The ground will be even more dense and uniform.frequency vibrator of 4000 times per minute will let the vibrator of leveling head produce an uniform high frequency vibration to make even more dense concrete floor.

    images display


    customers of hiking laser screed customers of hiking laser screed

    contact hiking laser screed

    IF you need to know more about the Laser screed, you can leave your contact in the below from, We will contact you in 24 hours.

      Weight 1200 kg
      Dimensions 320 × 160 × 180 cm
