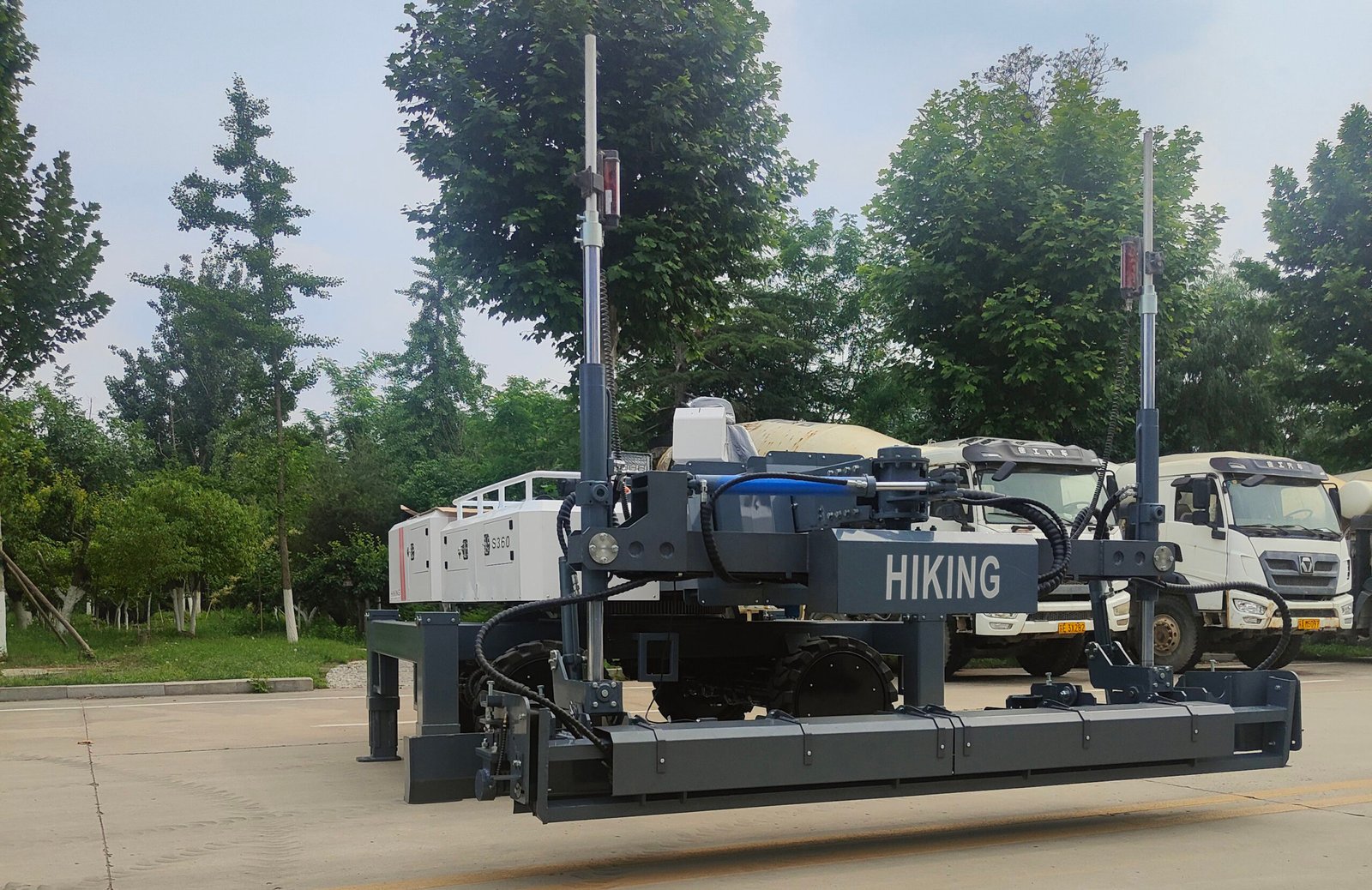

Introducing the S360 Laser Screed – the ultimate solution for achieving precise and efficient concrete leveling. Equipped with advanced features such as a powerful YANMAR turbocharged diesel engine, an intelligent variable pump, and an imported laser system, this machine delivers unparalleled accuracy and speed in construction projects. With its versatile control handle, hydraulic support legs, and solid puncture-proof tires, the S360 is built to withstand tough conditions and navigate even the tightest of spaces. If you’re a professional contractor, the S360 Laser Screed is sure to revolutionize the way you approach concrete construction.
(Some machines are offering big discounts, if you want to know the specific price, please inquiry us.)
Welcome to ask any questions about the machine and usually we will reply to you within 1 working day.
High Efficiency and Easy Operation
The S360 Laser Screed comes equipped with a versatile control handle that allows for easy and intuitive operation of all functions, making it a breeze to learn and use.
With its powerful and fuel-efficient YANMAR turbocharged diesel engine, the S360 is able to deliver high-performance results while consuming less fuel than other machines.
The machine’s intelligent variable pump is able to drive each action with precision, ensuring high efficiency and energy savings.
Precision and Accuracy
The S360 Laser Screed features an imported laser system that emits a stable and far-reaching beam, allowing for precise leveling and accurate results every time.

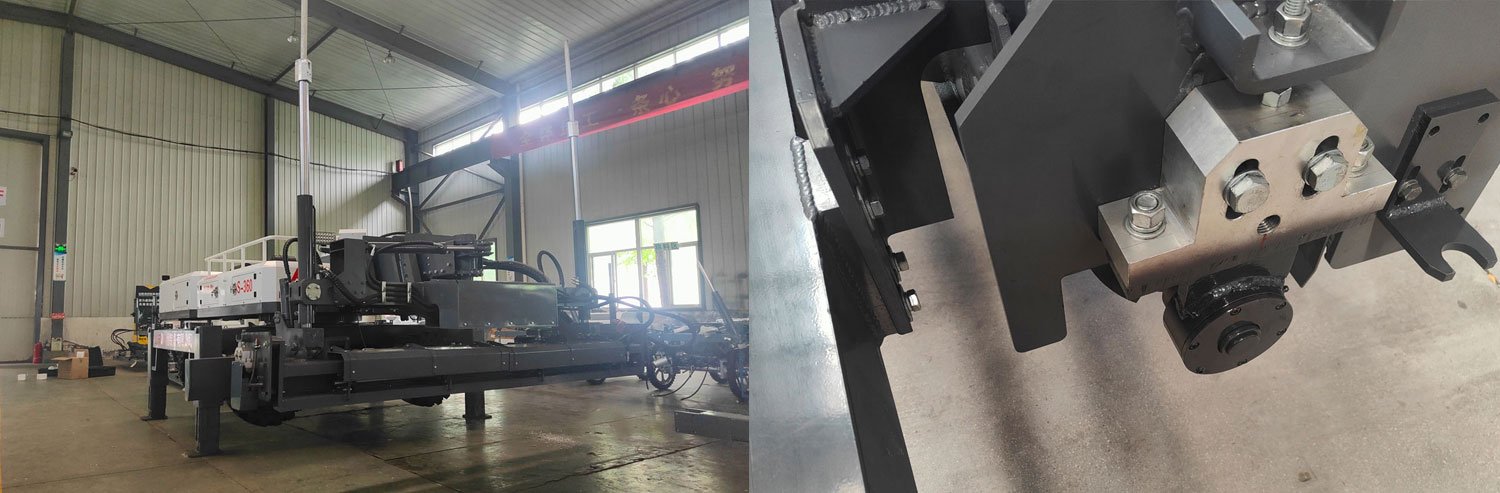

The machine’s intelligent control system ensures that the leveling mechanism is lowered in a controlled manner, allowing for a soft landing and increased accuracy in leveling surfaces.
The screed’s special vibration beam is designed with high-precision dynamic balancing, reducing vibrations and ensuring smooth and even surfaces.
Versatility and Durability
The S360 Laser Screed is equipped with hydraulic support legs that automatically adjust and level the machine with a single button press, making it easy to use on uneven surfaces.
The screed’s unique three-mode steering system allows it to navigate tight spaces and difficult terrain with ease.
With its sturdy construction and high-quality materials, including a specially-designed wear-resistant alloy steel screed blade, solid puncture-proof tires, and a high-pressure hydraulic cleaning system, the S360 is built to last and withstand even the toughest conditions.

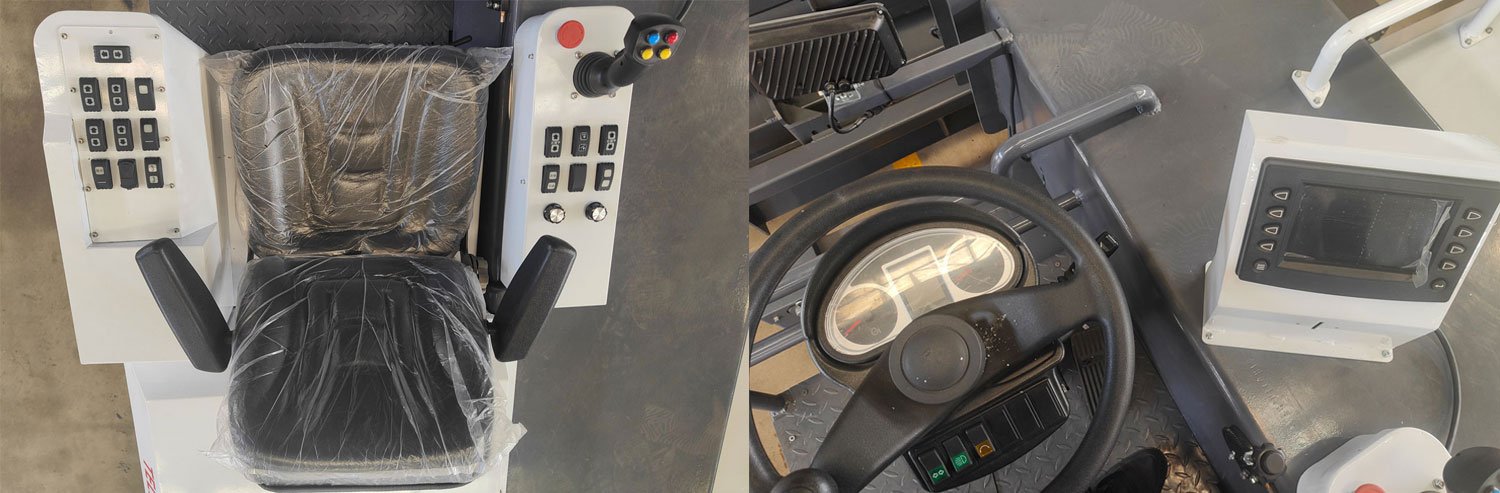

Multi-functional control handle that enables all operating actions with easy-to-learn and easy-to-use operation.
Large-screen intelligent touch display screen with powerful functionality and easy operation. Intelligent instrument panel that monitors the engine and hydraulic system in real-time, providing timely alarms and fault resolution.
The paver’s auger bearings are fully enclosed to prevent concrete from seeping in and avoiding machine failure during critical times.
The 360-degree telescopic arm is 6 meters long, and the rotating platform is fast. The 4-meter leveling machine head can rotate and swing, leveling 24 square meters of concrete each time. Equipped with a newly designed eccentric vibration beam and a 4.15-meter ultra-long scraper for superior performance.

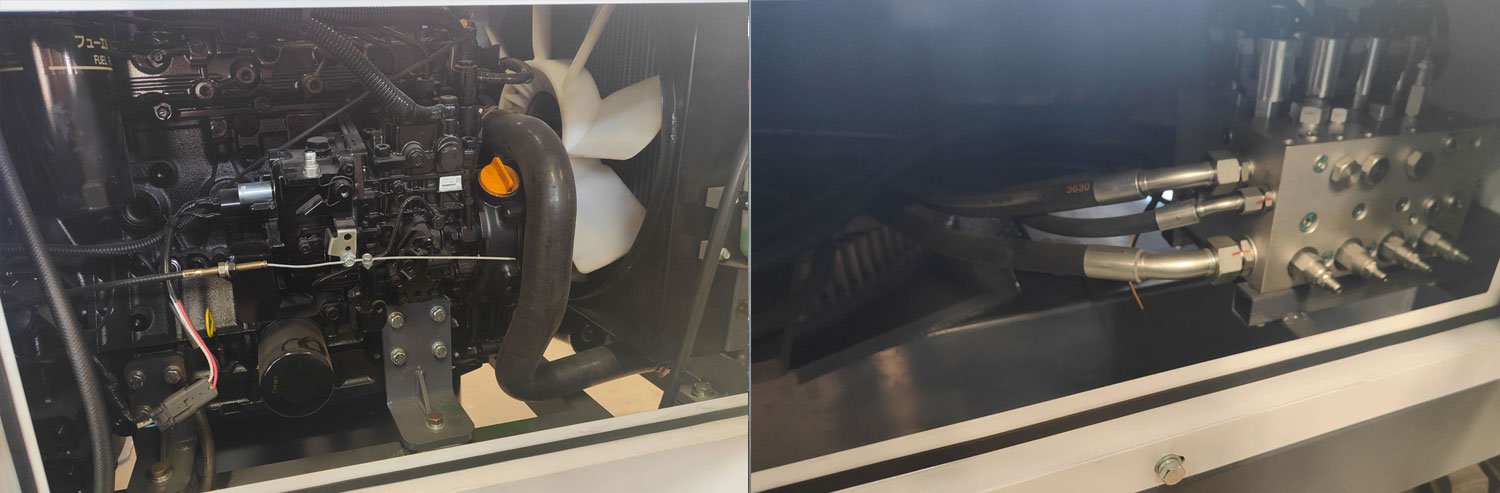

Equipped with a YANMAR diesel engine from Japan with turbocharging, providing powerful performance with low fuel consumption.
Equipped with a branded intelligent variable pump that can precisely drive each executing action with high energy efficiency and efficiency.

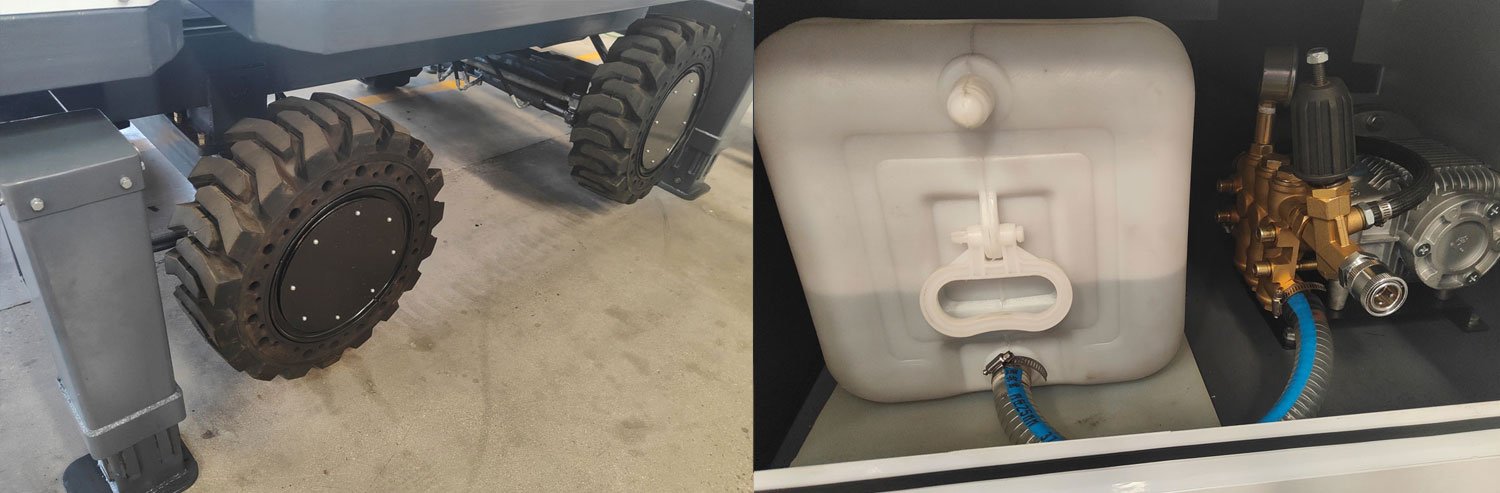

Hydraulic support legs that enable automatic leveling with one-button operation. Equipped with three types of crab-type steering modes for walking, suitable for various working conditions, including narrow spaces.
Equipped with a high-pressure hydraulic-driven cleaning water pump that can clean the machine body at any time.
Comparison between HIKING laser screed and the traditional crafts
Using traditional construction process needs more workers for supporting template (channel), RBI, paving, needing about 20 persons. The construction area per day is 800-1500㎡.
Using HIKING laser concrete screed can reduce the overall number of people to 4-8 persons. It can also be operated by one person. The construction area per day can be improved to 2000㎡—3500㎡, greatly reducing the labor costs.
Laser point-to-point, high-precision, low error.
Traditional craft leveling needs to support templates to control surface elevation and pull control line. Elevation error is larger. Entire levelness and flatness of the floor can not be guaranteed.
Using laser point emitter is applicable to disposable paving in a large area. The laser measurement and control system controls the elevation anytime, it does not need to pull the control line when leveling, it does not also need to support side templates to control ground level, thus avoiding the elevation error caused by template (channel) shock during the construction process, also reducing the elevation error caused by Traditional artificial block formworks.
Better flatness and integrity
Traditional construction process needs one day for formworks and one day for pouring mercury, so they can only jump for construction from one piece to another, there is a large limitation here they can not do continuous operation, and there exists a bad integrity and it is easy to cumulative errors in construction joints.
HIKING laser concrete screed will have a greater efficiency and flatness for the disposable overall paving with a large area of floor. The completion of the entire floor will make a better ground integrity. The traditional construction process can not complete this.
The ground will be even more dense and uniform.frequency vibrator of 4000 times per minute will let the vibrator of leveling head produce an uniform high frequency vibration to make even more dense concrete floor.
