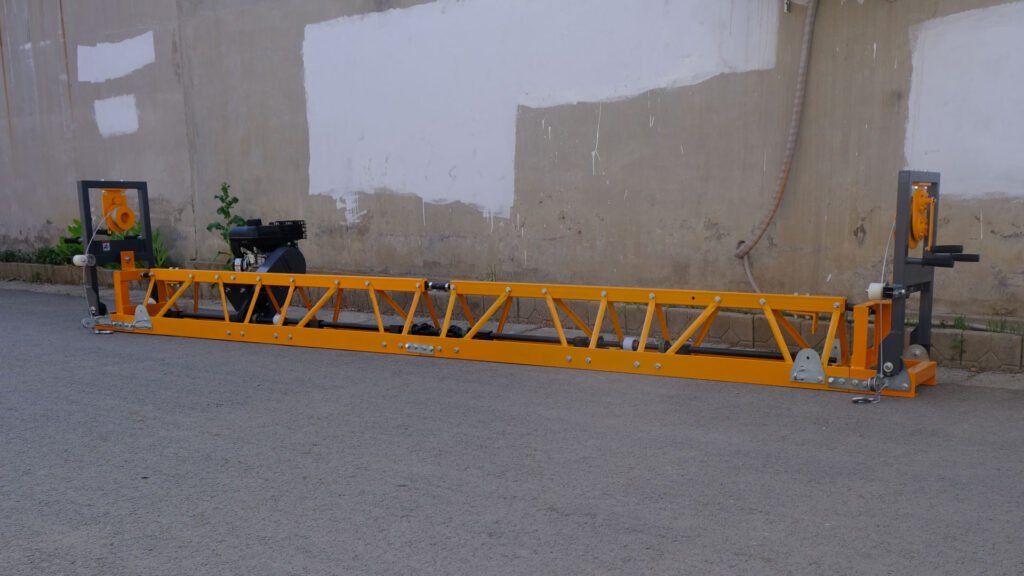

ZPL-300y Concrete Truss Screed Machine (4-15m, Steel Type)
Price range: $3,510.00 through $5,010.00

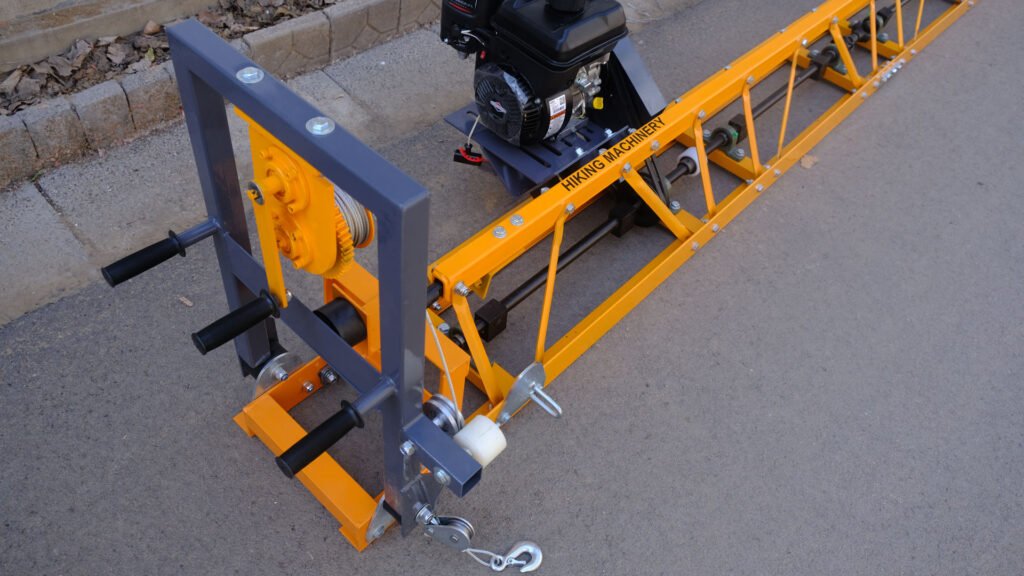

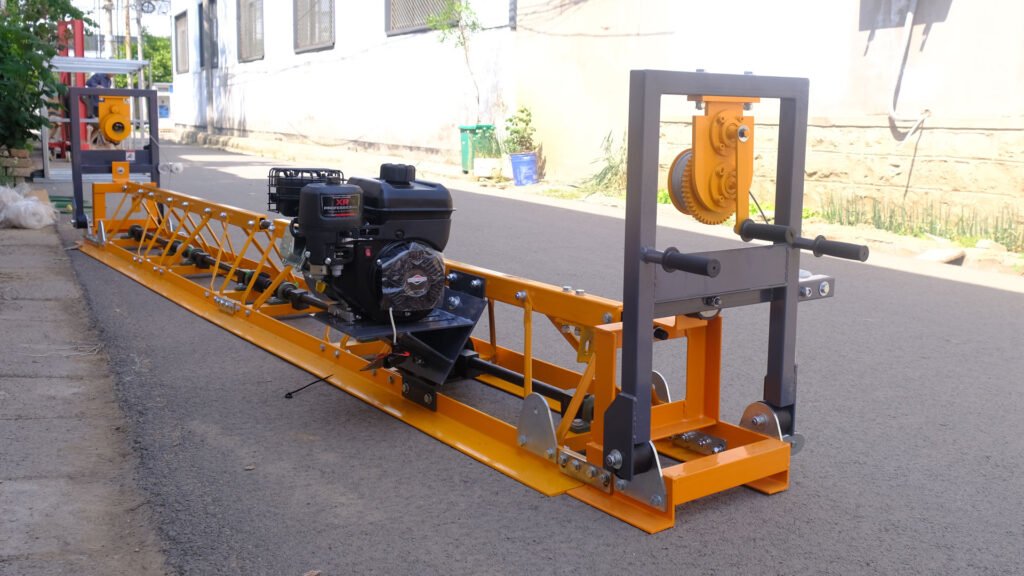

The ZPL-300y Concrete truss screed is constructed with wear-resistant steel and comes with a manual winch. It’s used for spreading and vibrating vast areas of concrete surfaces such as bridges, roads, and floors. This machine features a modular design consisting of screed sections in lengths of 0.5m, 1m, and 2m, which can be combined into different lengths to cover a work area width of 4 to 15 meters. Fitted with Honda and B&S engines, the screed can attain a rotation speed of up to 8,000 RPM, and its axial vibration ensures a potent and even dispersion of vibratory force. The operation is convenient and the work efficiency is high, saving users a significant amount of time and labor.
ABOUT THIS PRODUCT
- Truss screeds baseplates are made from cold-rolled sheet metal for extra wear and tear resistance.
- The overall frame is made from steel or aluminum alloy for extra strength and durability. It is also earthquake resistant.
- The design allows for easy removal and transportation of parts.
- The whole machine can be quickly assembled, reducing costs.
MODULE COMPONENTS
Model | Size | Weigh |
|---|---|---|
Center Section (ZPL-C10Y) | Length: 1.0m Frame Width: 400mm Height: 335mm | 63KG |
Center Section (ZPL-C20Y) | Length: 2.0m Frame Width: 400mm Height: 335mm | 89KG |
MODULE COMPONENTS
Model | Size | Weigh |
|---|---|---|
Center Section (ZPL-C10Y) | Length: 3.1m Frame Width: 355mm Height: 475mm | 38kg |
Center Section (ZPL-C20Y) | Length: 2.5m Frame Width: 355mm Height: 475mm | 72kg |
MODULE COMPONENTS
Model | Size | Weigh |
|---|---|---|
End Section (ZPL-E20Y) | Length: 3.1m Frame Width: 355mm Height: 475mm | 42kg |
End Section (ZPL-E20Y) | Length: 2.5m Frame Width: 355mm Height: 475mm | 76kg |
NOTICE: We offer a range of concrete truss screeds and can customize the machine to any length from 3m to 15m. You can also choose different engines according to your needs. If the type you need is not among the options above, please leave your contact information and the type you need, and we will quote you separately.
Q&A
Transportation
We can only transport it via sea freight for larger equipment like the vibratory truss screed. The delivery time varies for different countries. Please consult with us for specific details.
What kind of after-sales service is provided?
Our concrete truss screed comes with a free 1-year warranty and a lifetime service at cost. If any non-manmade faults occur within one year, we will provide free spare parts by mail. After the warranty period, we remain committed to helping you solve issues, only charging for part and shipment costs.
