ZPL-300L Hydraulic Truss Screed Machine
ZPL-300H-truss-screed-hydraulic-system
ZPL-300L Hydraulic Truss Screed Machine
ZPL-300H-truss-screed-hydraulic-system

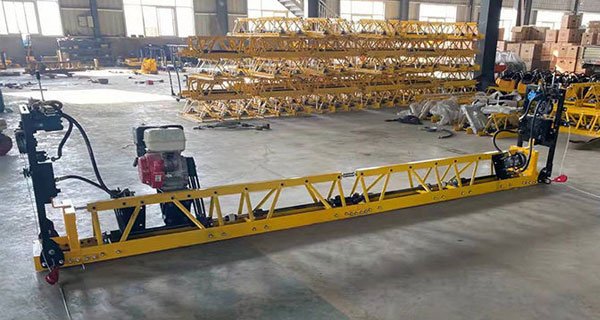

ZPL-300H Truss Screed Machine (Hydraulic Wihches) 4-15m

$5,600.00 – $7,700.00

The ZPL-300H Concrete truss screed machine is built with wear-resistant steel and is equipped with hydraulic winches for out-put power. This self-propelled mode makes it more labor-saving. It is suited for laying and vibrating concrete over large areas like bridges, roads, and floors, it features the same modular design with screed sections that come in lengths of 0.5m, 1m, and 2m. These sections can be combined to suit various lengths for a maximum operation width of 4 to 15 meters. With Honda and B&S engines capable of 8,000 RPM and axial vibration for powerful, even distribution, this screed is also designed for ease of use and high efficiency, offering substantial time and labor savings.

This product supports online purchase and free shipping to door (by sea) service in some countries, you can try the “Buy Now” below to purchase. If you have any questions about this machine, please click “Ask a Question” below to leave your contact information, and we will contact you within 24 working hours.

Ask Questions

Payment-&-Security

If you want to know the specific shipping policy, please check: Shipping Policy

SKU: hiking2016-6688-tsh Category:

ABOUT THIS PRODUCT

NOTICE: We offer a range of vibratory truss screed machines and can customize the machine to any length from 3m to 15m. You can also choose different engines according to your needs. If the type you need is not among the options above, please leave your contact information and the type you need, and we will quote you separately.

Datasheet
Product NameZPL-300 Truss Screed Machine
EngineB&G / HONDA
Power5.5hp/6.5hp/13.5hp
length of the roller6m(If you need other size, please inquiry us.)
  1. Truss screed machines baseplates are made from cold-rolled sheet metal for extra wear and tear resistance.
  2. The overall frame is made from steel or aluminum alloy for extra strength and durability. It is also earthquake resistant.
  3. The design allows for easy removal and transportation of parts.
  4. The whole machine can be quickly assembled, reducing costs.

Product Usage

The Hiking ZPL-300H vibratory truss screed Machine is applicable for leveling projects for concrete bridges, roads, and floors with widths within 25 meters and depths up to 200 millimeters.

Q&A

Transportation

We can only transport it via sea freight for larger equipment like the vibratory truss screed. The delivery time varies for different countries. Please consult with us for specific details.

What kind of after-sales service is provided?

Our concrete truss screed machine comes with a free 1-year warranty and a lifetime service at cost. If any non-manmade faults occur within one year, we will provide free spare parts by mail. After the warranty period, we remain committed to helping you solve issues, only charging for part and shipment costs.

Inquiry

If you need to know more about the machine, Please leave your contact in the below from, We will contact you in 24 hours.

    Weight 500 kg
    Dimensions 220 × 120 × 120 cm
    Width

    4m/13ft, 5m/16ft, 6m/20ft, 7m/23ft, 8m/26ft, 9m/29.5ft, 10m/33ft, 11m/36ft, 12m/39ft
