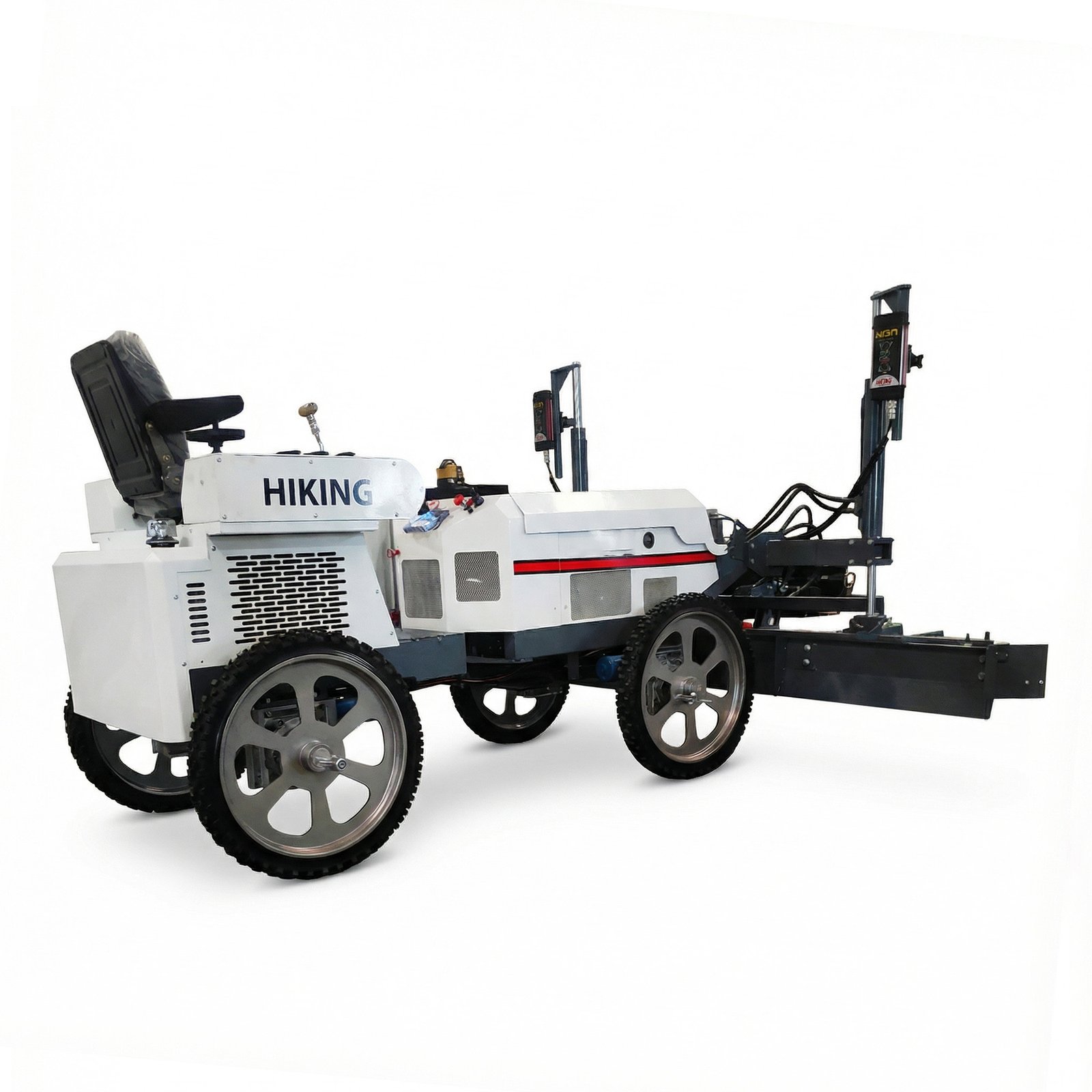

S740 Ride On Concrete laser screed Machine

$39,000.00

The S740 type of driver-typed laser screed is a very good kind of seat-type laser screed developed by our company. The machine adopts front and rear spliced design so as to achieve the characters like being light, flexible, and easy to operate. The main accessories are all originally imported. The machine adopts the high-powered engine imported from the United States with tremendous power so that it can still walk freely under the condition of thick concrete.

GET AN INQUIRY
The transportation, use, and maintenance of this product require a certain level of expertise, so please consult us before purchasing. Please click the “GAT AN INQUIRY” button above and leave your contact information. Our sales manager will contact you as soon as possible.
Engine
ModelBriggs&stratton V-type engine
Engine power27&31HP
Start upElectric start
Fuel tank capacityGasoline 17L
Walking system
Walking modeWheeled
Drive SystemHydraulic motor four-wheel drive
Drive controlElectric control hydraulic system
Leveling system
Paving methodAuger paving
Vibration frequency4000 times / minute
Vibration force500N
Work efficiency200m2-500m2/hour
Laser control systemLeica brand
Elevation controlDouble hydraulic cylinder
Laser controlLaser scanning
Control effectPlane, slope or double slope
Others
Maximum ground clearance330mm
Tire model100/900-21Anti-solid narrow tire (inflatable wide tire)
Net weight1000kg
Machine size2880X2600X1040mm
The parameters and pictures in this catalogue are for reference only. The specific data is subject to the actual product.


</div

This engine of the s740 laser screed
The powertrain is equipped with a 31-horsepower, high-torque petrol engine powered by Briggs&Stratton (USA), providing the machine with the power.
The hydraulic valve unit of the laser screed
The advanced fully electronically controlled hydraulic valve block realizes complete electronic control of steering speed regulation, which makes the machine operation more convenient and at the same time makes the machine have higher sensitivity.
The imported 18cc hydraulic pump is equipped with to provide powerful hydraulic power to the machine.
The imported 18cc hydraulic pump is equipped with to provide powerful hydraulic power to the machine.

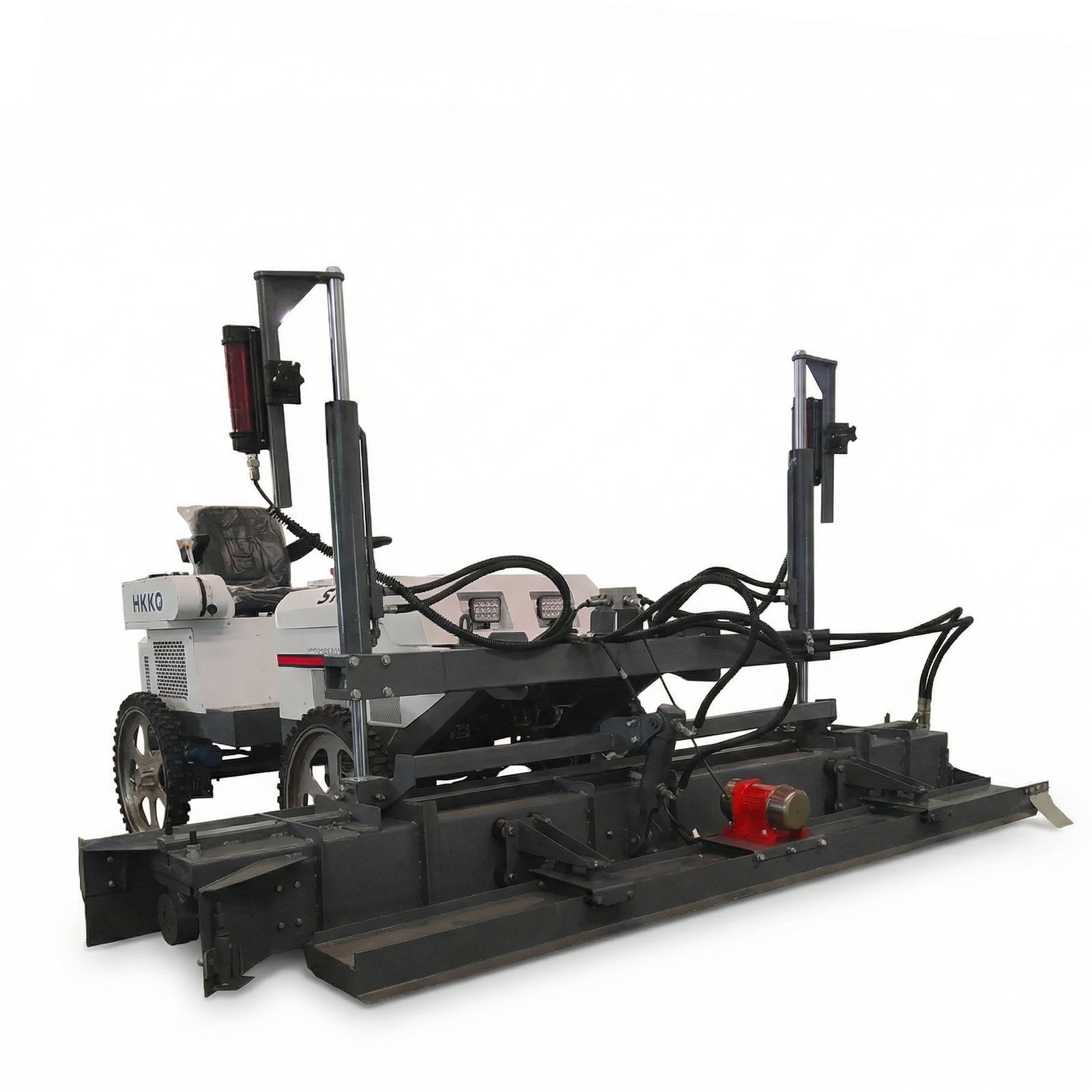

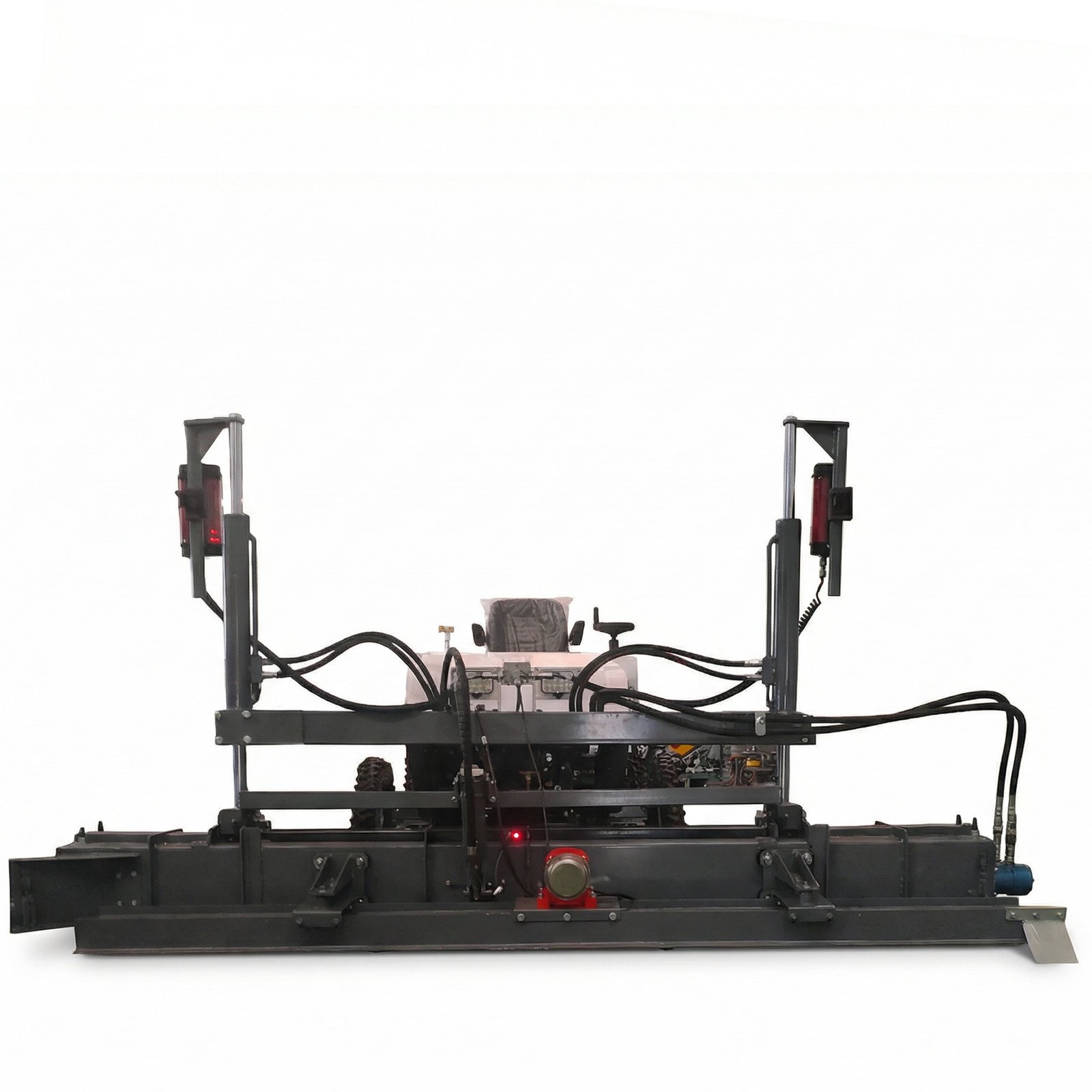

The work head of the s740 laser screed
The advanced self-leveling leveling head gives the machine an excellent leveling effect.
It is equipped with a 4000hz high-frequency Siemens (Germany) vibration motor to make the flattened concrete more compact.
It is equipped with a 4000hz high-frequency Siemens (Germany) vibration motor to make the flattened concrete more compact.

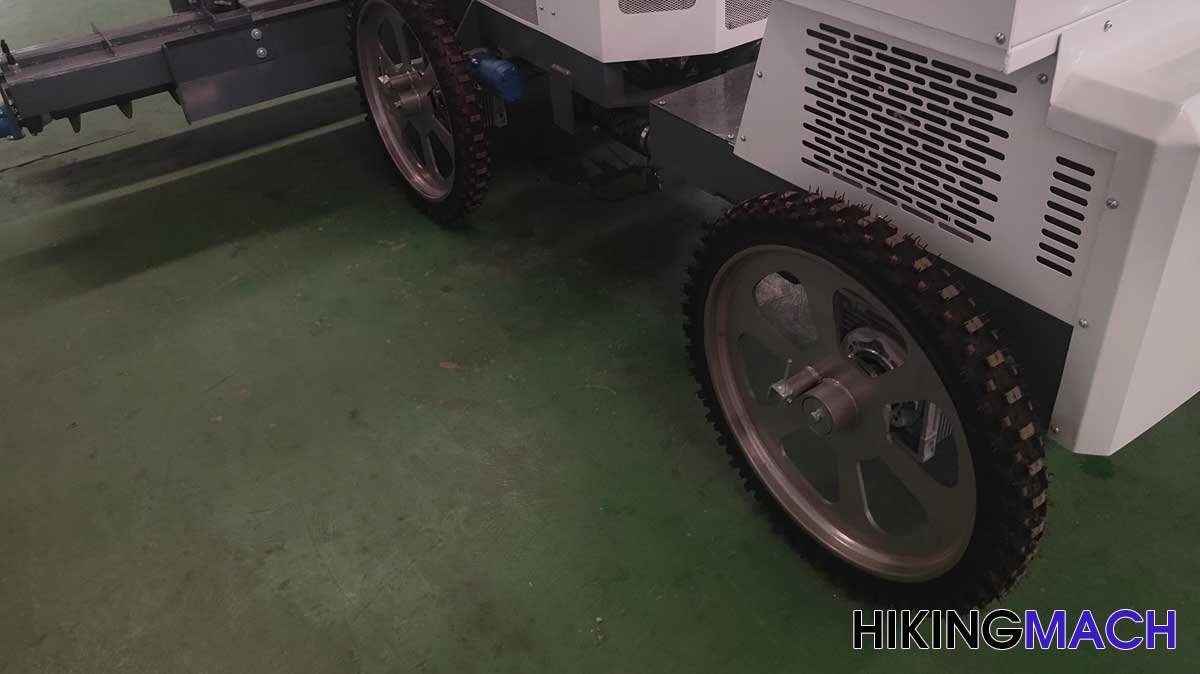

The wheels of the s740 laser screed
Free off-road solid anti-strength tires can be used in concrete leveling conditions without reinforced mesh or thick mesh.
Free with vacuum wide tires, it can be used under the condition of finer mesh.
Free with vacuum wide tires, it can be used under the condition of finer mesh.

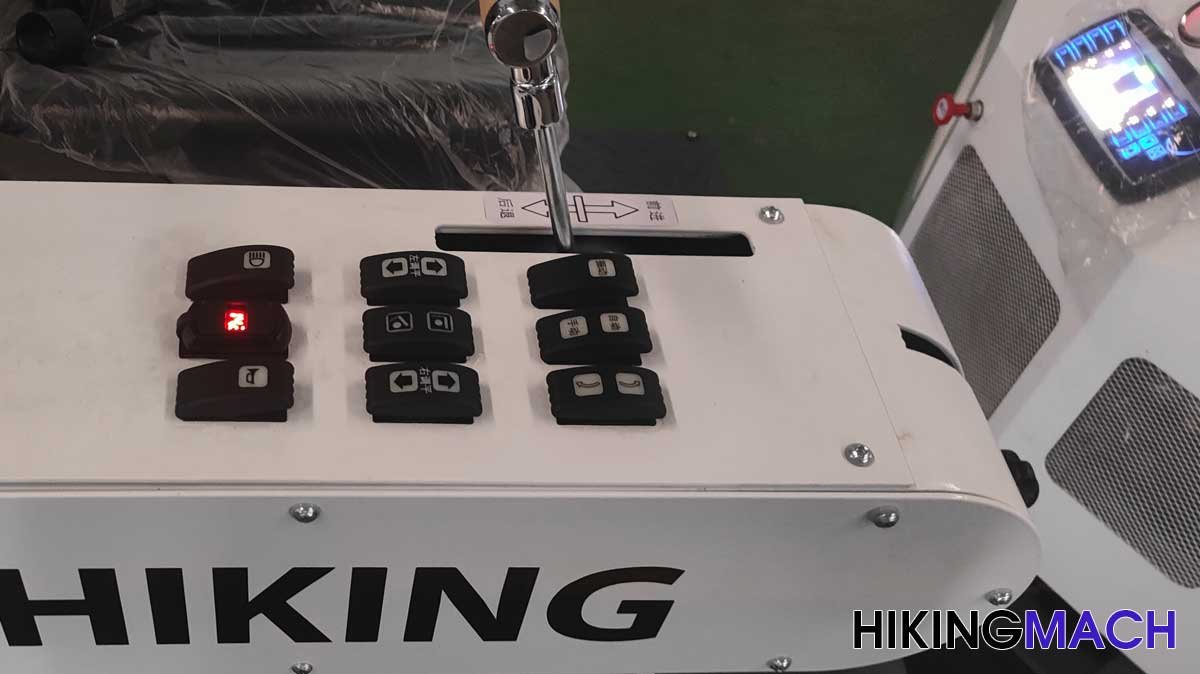

The control plane of the s740 laser screed
The forward and backward movements are controlled by an electric joystick, which is easy to operate. The speed adjustment uses a knob control to precisely adjust the machine speed. The control surface has a one-button automatic leveling function.
The steering is also controlled by an electronically controlled rocker instead of mechanical control, making the operation more sensitive and simple.
The steering is also controlled by an electronically controlled rocker instead of mechanical control, making the operation more sensitive and simple.

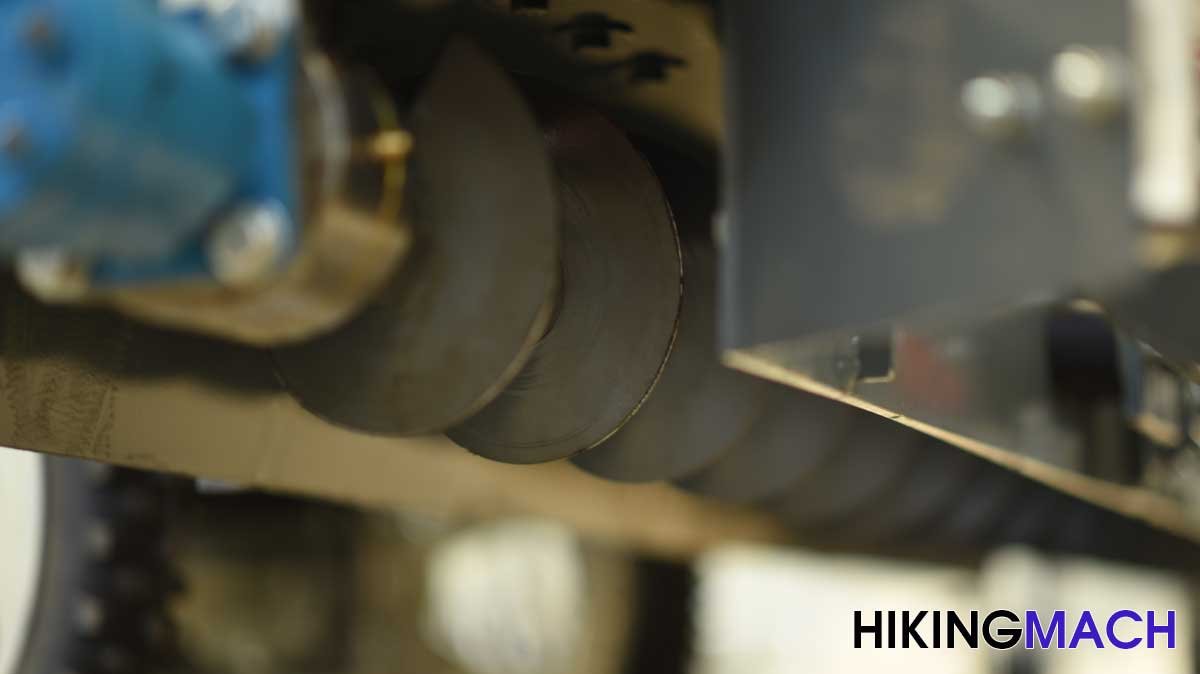

The machine is equipped with a high-speed feeding screw that automatically discharges excess concrete and reduces manpower input.

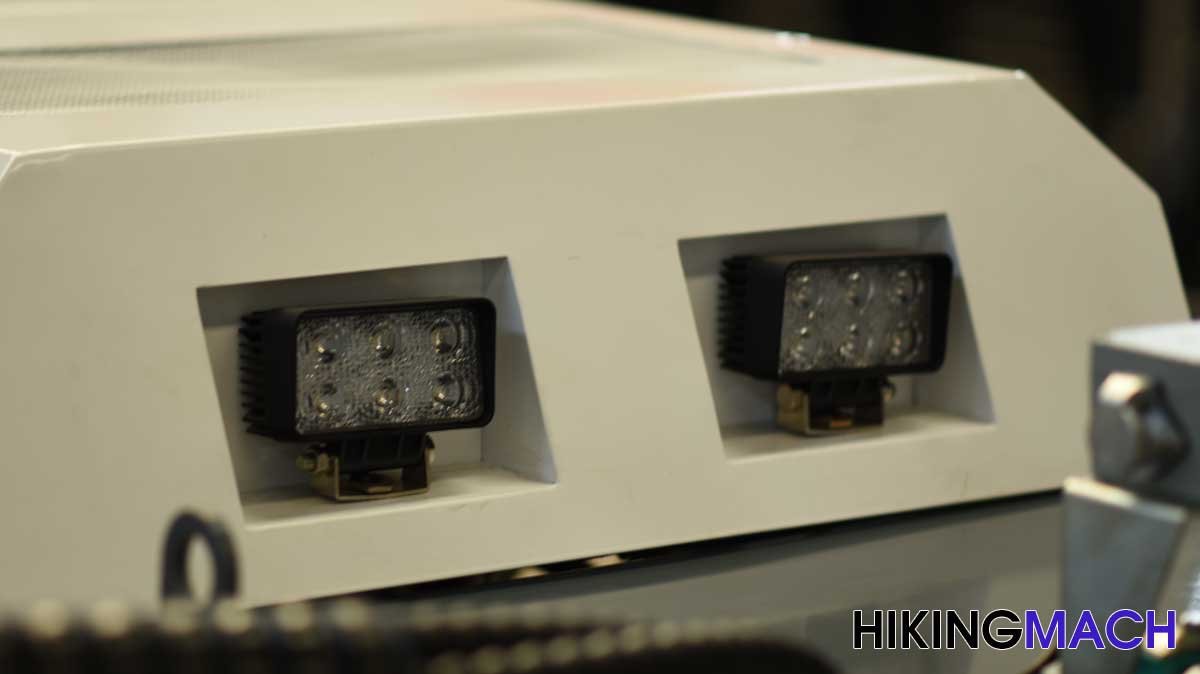

Super bright LED headlights
Super bright LED headlights

The high-pressure washer is provided free of charge, so that the customer can clean the concrete stuck on the machine in time after use and improve the service life of the machine.
The high-pressure washer is provided free of charge, so that the customer can clean the concrete stuck on the machine in time after use and improve the service life of the machine.

Comparison between HIKING laser screed and the traditional crafts

  1. Reducing labor costs, improving efficiency doubled

Using traditional construction process needs more workers for supporting template (channel), RBI, paving, needing about 20 persons. The construction area per day is 800-1500㎡.

Using HIKING laser concrete screed can reduce the overall number of people to 4-8 persons. It can also be operated by one person.  The construction area per day can be improved to 2000㎡—3500㎡, greatly reducing the labor costs.

  1. Laser point-to-point, high-precision, low error.

Traditional craft leveling needs to support templates to control surface elevation and pull control line. Elevation error is larger. Entire levelness and flatness of the floor can not be guaranteed.

Using laser point emitter is applicable to disposable paving in a large area. The laser measurement and control system controls the elevation anytime,  it does not need to pull the control line when leveling, it does not also need to support side templates to control ground level, thus avoiding the elevation error caused by template (channel) shock during the construction process, also reducing the elevation error caused by Traditional artificial block formworks.

  1. Better flatness and integrity

Traditional construction process needs one day for formworks and one day for pouring mercury, so they can only jump for construction from one piece to another, there is a large limitation here they can not do continuous operation, and there exists a bad integrity and it is easy to cumulative errors in construction joints.

HIKING laser concrete screed will have a greater efficiency and flatness for the disposable overall paving with a large area of floor. The completion of the entire floor will make a better ground integrity. The traditional construction process can not complete this.

The ground will be even more dense and uniform.frequency vibrator of 4000 times per minute will let the vibrator of leveling head produce an uniform high frequency vibration to make even more dense concrete floor.

If you want to know more about this machine, please check: Laser Screed For Sale
